Rear Bench Seat, Removing and Installing

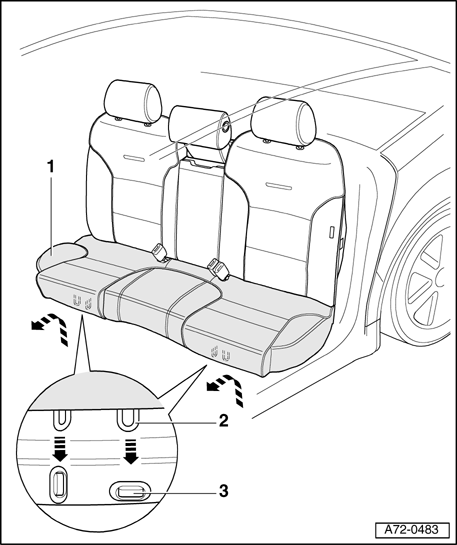

Fig 1: Rear Bench Seat, Removing And Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Rear seat bench

• Removing

• Raise rear seat bench - 1  - and pull out rear seat bench - 1  - toward front.
• With seat heater: Disconnect connector.

• Installing

• Engage anchoring lugs - 2  - (4x) into plastic sleeves - 3  - (4x).
• Push rear seat bench - 1  - down.

2 - Anchoring lugs (4x)

3 - Plastic sleeves (Qty. 4)

• Replace

*Replacing plastic sleeves (Qty. 4)

Fig 2: Body Opening & Mounting Grommets

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove the used mounting grommets from the body opening.

• Insert the new mounting grommets - 2  - into the body opening - 1  - until it engages audibly.
