Center Armrest, Removing and Installing

Removing

• Remove rear seat bench → Rear Bench Seat, Removing and Installing .
• Remove rear seat backrest → Rear Backrest, Removing and Installing .

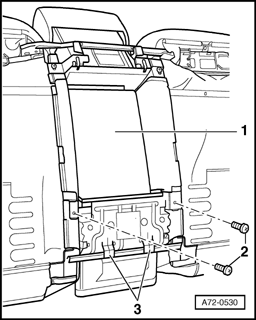

Fig 1: Center Armrest, Brackets & Bolts

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Remove bolts - 2  - (qty. 2).
• Disengage center armrest - 1  - from brackets - 3  - (2x).

Installing

• Install center armrest - 1  - in reverse order of removal.
