Airbag Adapter VAS 6229, Connecting

NOTE:

Before disconnecting the ignition and ground wiring, discharge static electricity by touching the door striker pin.

CAUTION: Airbag adapter VAS 6229 must remain connected to seat until the seat is installed again.

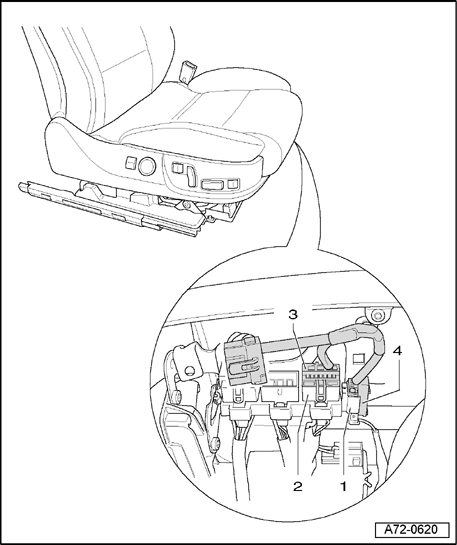

Fig 1: Airbag Adapter VAS 6229, Connecting

Courtesy of VOLKSWAGEN UNITED STATES, INC.

1 - Connector for airbag (yellow), seat side

2 - Voltage supply connector for seat (brown)

3 - Voltage supply connector for airbag adapter (brown)

4 - Airbag adapter connector (yellow)

Connect connector for airbag - 1 - to airbag adapter connector - 4 -.
Connect voltage supply connector for airbag adapter - 3 - to voltage supply connector for seat - 2 -.
