Seat Belt Height Adjuster, Removing and Installing

• Removing

• Remove lower B-pillar trim → Lower B-Pillar Trim, Removing and Installing .
• Remove upper B-pillar trim → Upper B-Pillar Trim, Removing and Installing .
• Remove three-point seatbelt → Three-Point Seat Belt, Removing and Installing  and → Front Door Trim, Removing and Installing .

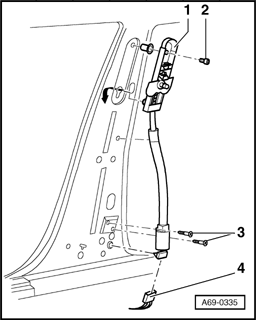

Fig 1: Seat Belt Height Adjuster Remove/Install Components

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Disconnect connector - 4  -.
• Remove bolts - 3  - (qty. 2).
• Remove screw - 2  -.
• Remove belt height adjuster - 1  - upward.

• Installing

• Install belt height adjuster - 1  - in reverse order of removal.
