Rear Three-Point Seat Belt, Removing and Installing

Special tools, testers and auxiliary items required

• Torque wrench V.A.G 1332

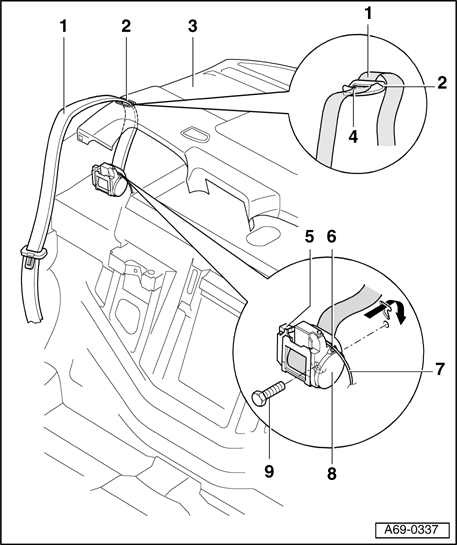

1 - Belt webbing

2 - Seatbelt guide cover

3 - Rear shelf

4 - Opening in seatbelt guide cover

5 - Belt tensioner connector

6 - Clip

7 - Cable

8 - Belt roller/belt tensioner

• Removing

• Remove rear seat bench → Rear Bench Seat, Removing and Installing .
• Remove rear seat backrest → Rear Backrest, Removing and Installing .
• Remove rear outer floor assembly anchorage point → Rear Outer Floor Assembly Anchorage Point, Removing and Installing .
• Remove screw - 9  -.

• Disconnect belt tensioner connector - 5  -.
• Disengage belt roller - 8  -.

• Installing

• Disengage belt reel - 8  - in direction of arrow.
• Make sure that wire - 7  - is secured at clip - 6  -.
• Continue to install belt reel - 8  - in reverse order of removal.
• Check belt wear detection.

9 - Screw

• Tightening torque 55 Nm.
