Front and Rear Carpet Strips, Removing and Installing

Removing

• Pull carpet out of front and rear carpet strips.
• Unclip carpet strips from center console.

Installing

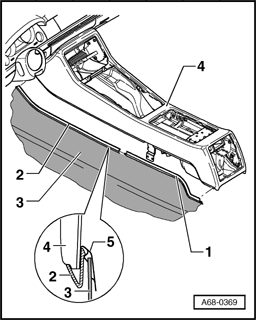

Fig 1: Front/Rear Carpet Strips, Removing/Installing

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• Install carpet strips - 1  - and - 2  - on to carpet - 3  -.

Make sure that carpet - 3  - is seated correctly in clamps - 5  -.

• Install carpet strips - 1  - and - 2  - on to center console - 4  -.
• Push on the carpet - 3  - and while doing this the carpet strips must engage into clamps - 5  - of center console.
