Tail Lamp, Aligning to Body Contour

Adjustment in driving direction:

Fig 1: Tail Lamp Retaining Pin

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Gradually turn retaining pin - arrow - in/out with rear light removed ( → Outer Tail Lamps, Removing and Installing ).

Adjustment perpendicular to driving direction:

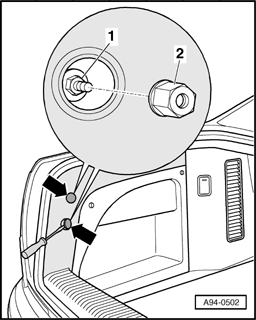

Fig 2: Turning Adjusting Nut In/Out After Unfastening Nut

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Tightening torque

Component	Nm
Tail lamp to body	3

Adjustment in driving direction:

Fig 1: Tail Lamp Retaining Pin

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Gradually turn retaining pin - arrow - in/out with rear light removed ( → Outer Tail Lamps, Removing and Installing ).

Adjustment perpendicular to driving direction:

Fig 2: Unclipping Plugs From Luggage Compartment Lining

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Tightening torque

Component	Nm
Tail lamp to body	3
