Overview - Outer Tail Lamps

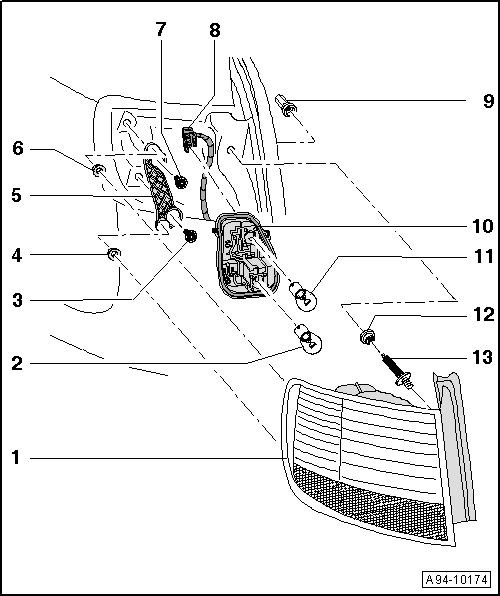

Fig 1: Rear Lights In Rear Fenders, Assembly

Courtesy of AUDI OF AMERICA, LLC

Housing
- Removing and installing, refer to TAIL LAMP AND OUTER BULB HOLDER
- Align to body contour, refer to TAIL LAMP, ALIGNING TO BODY CONTOUR
Rear Turn Signal Bulb
- Left Rear Turn Signal Lamp -M6-
- Right Rear Turn Signal Lamp -M8-
- 12V, 21 W
- Removing and installing, refer to TAIL LAMP AND OUTER BULB HOLDER
Nut
- 2.5 Nm
- Install with locking compound.
Clip Nut
Retaining Element
- For aligning housing to body contour, refer to TAIL LAMP, ALIGNING TO BODY CONTOUR
Clip Nut
Nut
- 2.5 Nm
- Install with locking compound.
Electrical Connector
Cap Nut
- 3.5 Nm
Bulb Holder
- Removing and installing, refer to TAIL LAMP AND OUTER BULB HOLDER
Tail Lamp/Brake Light Bulb
- Left Tail Lamp -M4-
- Right Tail Lamp -M2-
- Left Brake Lamp Bulb -M9-
- Right Brake Lamp Bulb -M10-
- 12V, 21 W
- Does not apply to vehicles with LED's
- Removing and installing, refer to TAIL LAMP AND OUTER BULB HOLDER
Adjusting Nut
- With seal
- To adjust tail lamp to body contour
Threaded Studs
- Bolted in side panel
