Rear Lid, Adjusting, AVANT: Notes

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Gauge - Gap Adjustment 3371

Gap Dimensions

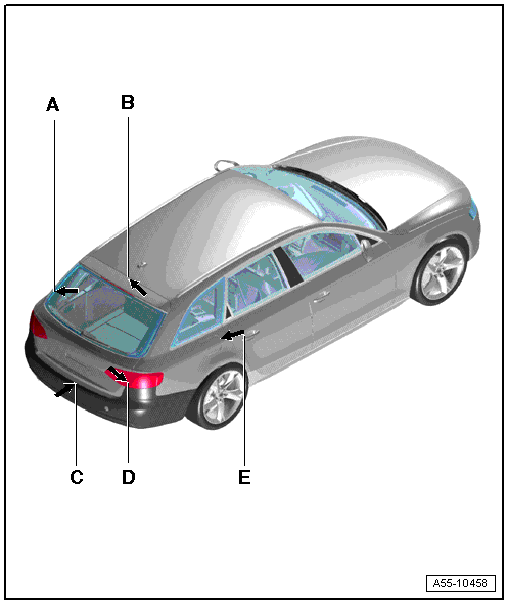

Fig 1: Rear Lid Gap Dimensions Points (Avant)

Courtesy of AUDI OF AMERICA, LLC

Dimension -A- = 3.5 mm
Dimension -B- = 4.5 mm
Dimension -C- = 5.0 mm
Dimension -D- = 3.5 mm
Dimension -E- = 2.2 mm all around
Make sure the gap is parallel to the body.

NOTE:

The gas-filled struts must be attached before installing a new rear lid.

Adjusting with Striker Pin

NOTE:

Before adjusting, install the adjusting buffer on the rear lid side completely. Refer to Figure.

Fig 2: Identifying Combination Nuts -1- And -3-, Striker Pin -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear lid end panel trim panel. Refer to COMPONENT LOCATION OVERVIEW - REAR LID TRIM PANELS

-- Loosen the combination nuts -1- and -3-, striker pin -2- must be adjustable.

-- Note different versions.

Fig 3: Identifying Combination Screws, Striker Pin -2- With Motor For Closing Aid -1-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the combination screws. It must still be possible to move the striker pin -2- with the closing aid motor -1-.

-- For easier installation, there are markings on rear cross panel you can use to adjust the striker pin.

Fig 4: Identifying Upper And Lower Striker Pin End Position

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

To adjust rear lid, closing aid motor must be in >>lid closed<< position (lower end position).
Striker pin cannot be installed in position not visible in drawing (upper end position) -1- because rear lid can contact block when closing and be damaged.
Do not use the closing assist motor to adjust rear lid.

-- Install the upper section of the adjusting buffer on the rear lid side completely before adjusting the rear lid. Refer to Figure.

-- Tighten the nuts -1- and -3- hand-tight.

Fig 5: Identifying Combination Nuts -1- And -3-, Striker Pin -2-

Courtesy of AUDI OF AMERICA, LLC

-- Close rear lid and align with body contour.

-- Rear lid latch must be engaged in main detent (second retainer) during this.

-- Open rear lid in this position and tighten the nuts -1- and -3- to the tightening specification. Refer to "OVERVIEW - REAR LID, AVANT" -item 13- Nut (See Fig 5).

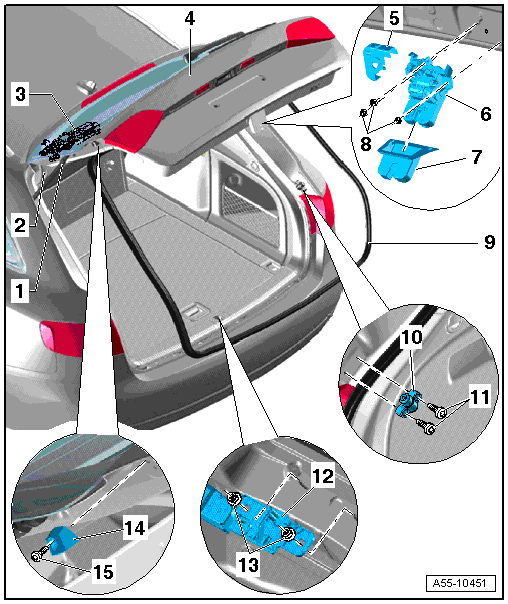

Fig 6: Identifying Rear Lid Latch And Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- If the same striker pin is reinstalled, mark this location before removing.

NOTE:

Striker pin with closing aid can only be installed in >>lid closed<< position, same as delivery condition for a new part.

If the same rear lid catch is going to be installed again, open the rear lid and lock the rear lid latch or the rotary latch with a screwdriver.

Closing aid runs in >>lid closed<< position = basic position.

Now remove the connector from closing aid and the rear lid latch can be opened again by activating grip piece in rear lid.

-- Tighten nuts -1- slightly.

-- Close rear lid and align with body contour.

-- Rear lid latch must be engaged in main detent (second retainer) during this.

-- Open the rear lid in this position and tighten the nuts -1- to the tightening specification. Refer to "OVERVIEW - REAR LID, AVANT" -item 13- Nut (See Figure).

-- Tighten the screws -2- for the stop on the body -1- to 8 Nm. Refer to -item 11- Bolt (See Figure or Fig 7).

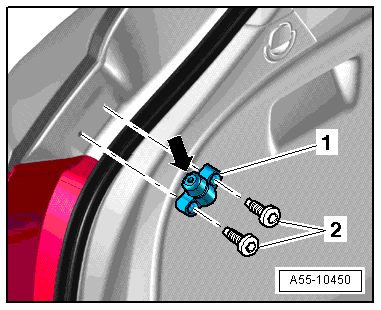

Fig 7: Adjusting Buffer -Arrow- Of Rear Lid Stop

Courtesy of AUDI OF AMERICA, LLC

-- Turn adjusting buffer -arrow- until closed rear lid with stop buffer on rear lid side makes contact with stop.

-- Check whether rear lid still closes easily, repeat adjustment at adjusting buffer if necessary.

-- If rear lid is difficult to close, tighten the adjusting buffer slightly.
