Hinges, Removing And Installing, AVANT

WARNING: This page does not describe the selected car, but rather 18 other vehicles, including the 2016 Audi S4, 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi S4, and 2015 Audi A4 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The rear lid drive units must be removed first on vehicles equipped with power lid actuation. Refer to OVERVIEW - REAR LID MOTOR .

When installing, pay close attention to the tightening sequence for the bolts.

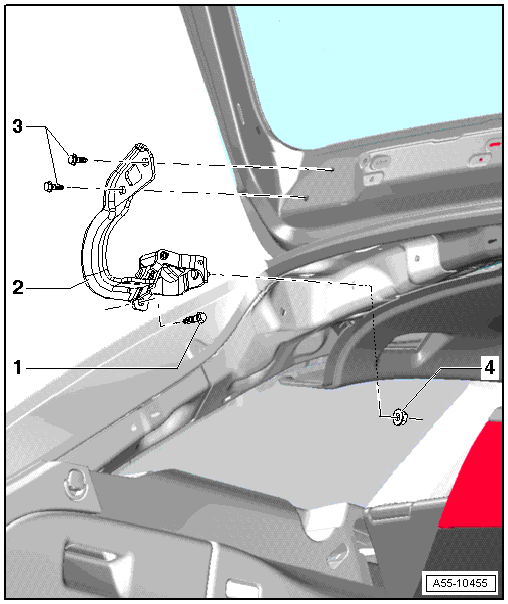

Fig 1: Removing/Installing Rear Lid Hinge (Avant)

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 21 Nm
Lid Hinge
Removing:

-- Remove headliner. Refer to Roof Trim Panels .

-- Remove the rear lid hinge cover. Refer to Fig 2.

NOTE:
Support the rear lid to keep it from falling down and too prevent damage the rear lid or the vehicle body.

-- Remove the bolts -3- from the lid.

-- Remove the bolt -1- and hex nut -4- and then remove the hinge.

Installing:

-- Place the hinge onto the body and gently tighten the nut -4- on the roof frame.

-- Then lightly attach the hinge on the side with the screw -1-.

-- Secure the hinge with the screws -3-.

-- Align the lid to the body on the left and right side and tighten the screws -3- to the tightening specification.

-- Adjust the height of the lid to the roof and then tighten the bolt -1- and nut -4- to the tightening specification.

-- Press on hinge cover.
Bolt
- 21 Nm
Hex Nut
- 21 Nm

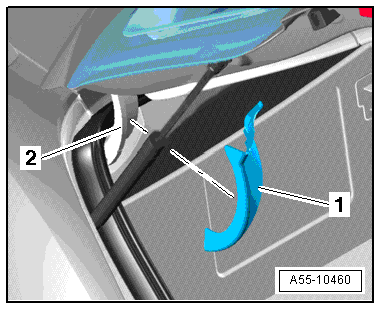

Fig 2: Rear Lid Hinge Cover

Courtesy of AUDI OF AMERICA, LLC

-- Cover is placed on rear lid hinge.

-- Loosen side locking tabs on cover -1- and remove from hinge -2-.

-- To install, position retainer tabs in catches on hinge arm and press opposite side of cover down completely.

-- The cover must audibly engage.
