Spoiler Adjustment Control Module, Removing And Installing: Removing

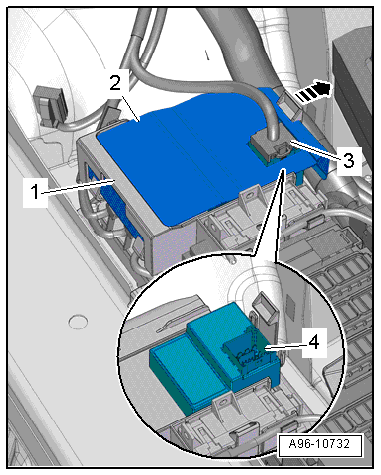

Fig 1: Identifying Frame -1-, Bracket -2-, Connector -3- And Rear Spoiler Control Module -J223- -4-

-- Open the right luggage compartment side trim panel.

-- Disconnect the connector -3- .

-- Release the clamp -arrow- and remove the bracket -2- .

-- Remove the Rear Spoiler Control Module -J223- -4- from the frame -1- .
