Input Shaft Cover, Removing And Installing: Installing
-- Replace the input shaft ball bearing. Refer to INPUT SHAFT BALL BEARING, REMOVING AND INSTALLING .
-- Place input shaft cover on input shaft and press on by hand as far as possible.
-- Place the input shaft -B- on the Press Plate VW401.
Place input shaft straight and centered under hydraulic press thrust disc; otherwise input shaft can tip to the side when cover is pressed on.

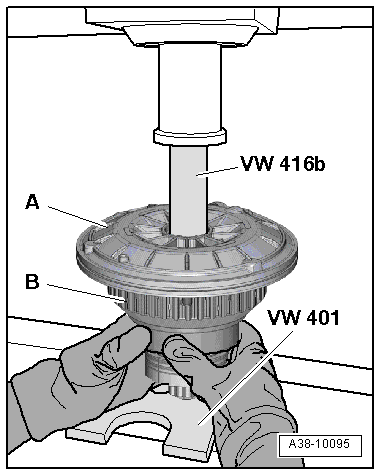

-- With hydraulic press, press input shaft cover -A- with Press Piece - 37mm VW416 B onto input shaft up to stop.

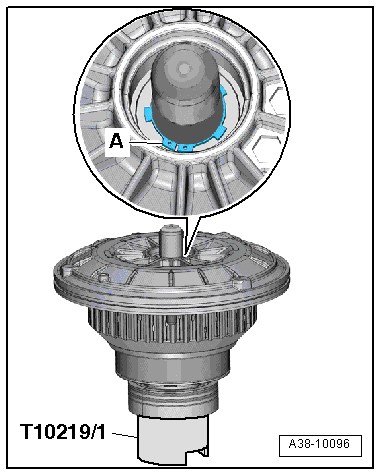

-- When installing, circlip -A- must be replaced with a new circlip of same thickness.
- The locking ring must fit inside the bottom of the groove.
-- Check wear on transmission components. Refer to INPUT SHAFT, CHECKING FOR WEAR .
-- Replace O-ring on oil pipe -2-.
- The oil pipe is pressed into the input shaft with the O-ring -2-.
- Oil pipe must engage noticeably, rotor blades -arrow A- on oil pipe must lie completely in input shaft.
-- Press oil pipe -arrow- down into input shaft to stop.

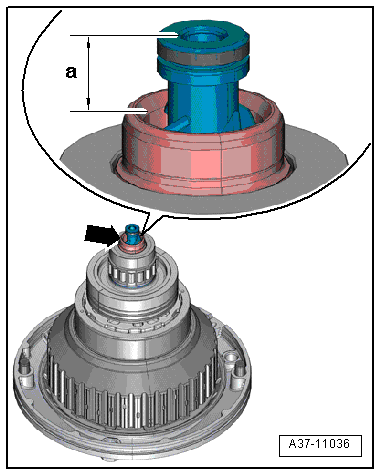

- The distance from the end of the oil pipe up to the input shaft is approximately 11.5 mm -a- when the oil pipe is inserted all the way.
If the dimension is smaller, the oil pipe possibly is damaged as it was pushed in too far and is broken at the end.
If the dimension is larger, it is not pushed in far enough.
If the oil pipe is damaged, starting problems or a transmission malfunction will result.

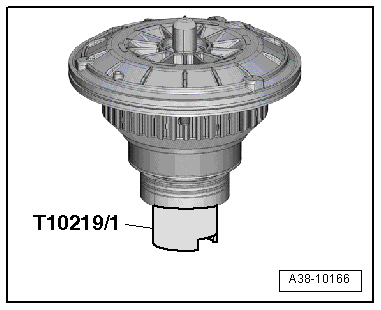

- The input shaft may not be placed on the protruding oil pipe -arrow-.
