Removal [08/2013 - ]

WARNING: This page is about a different car, the 2014 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE SPOT LIGHT ASSEMBLY
    1. Using a molding remover, disengage the 4 claws.

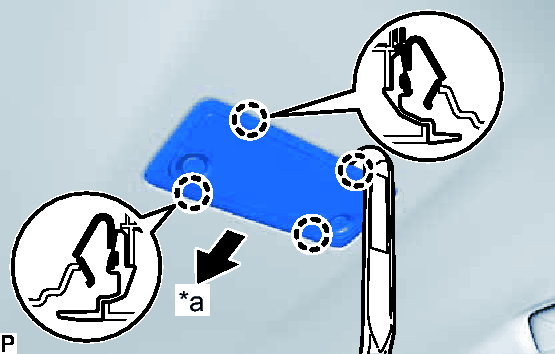

      Fig 1: Identifying Spot Light Assembly Claws
      GTY405523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Front
    2. Disconnect the connector and remove the spot light assembly.
  2. REMOVE BULB ASSEMBLY
    1. Turn the 3 bulb assemblies in the direction indicated by the arrows in the illustration and remove them.

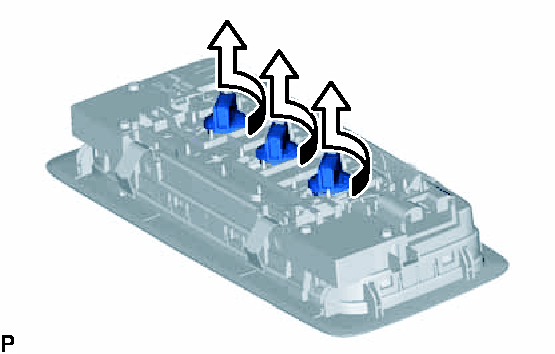

      Fig 2: Identifying 3 Bulb Assemblies
      GTY408911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SPOT LIGHT BULB
    1. Remove the 3 spot light bulbs from the 3 spot light sockets.
