Oil pump, removing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

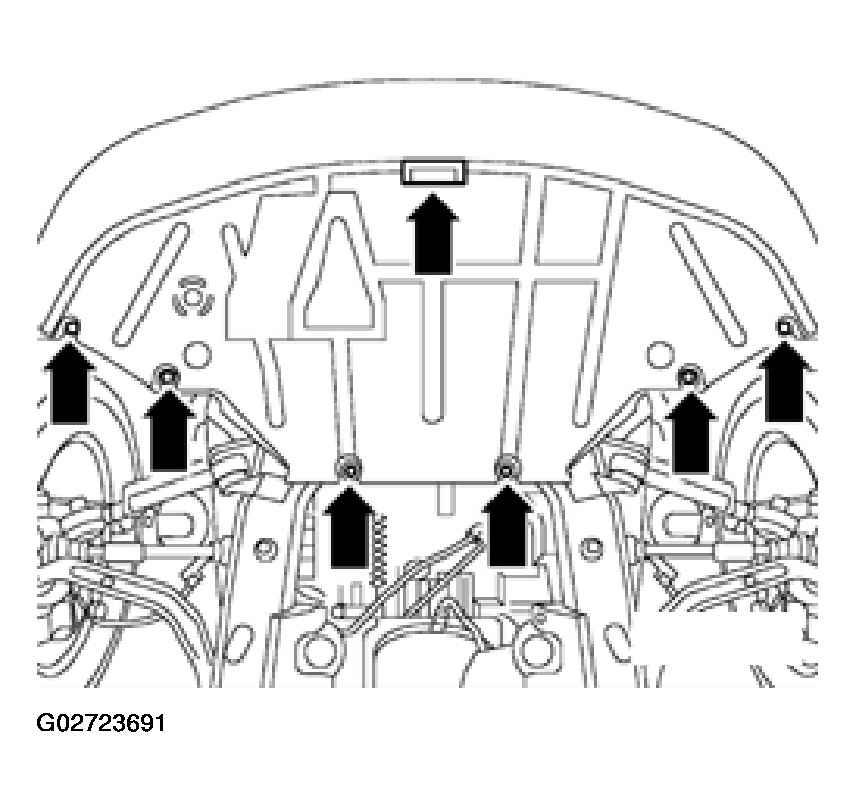

Remove noise insulation.

Fig 1: Removing Noise Insulation
Courtesy of AUDI OF AMERICA, INC.
Remove dipstick.
Drain engine oil.

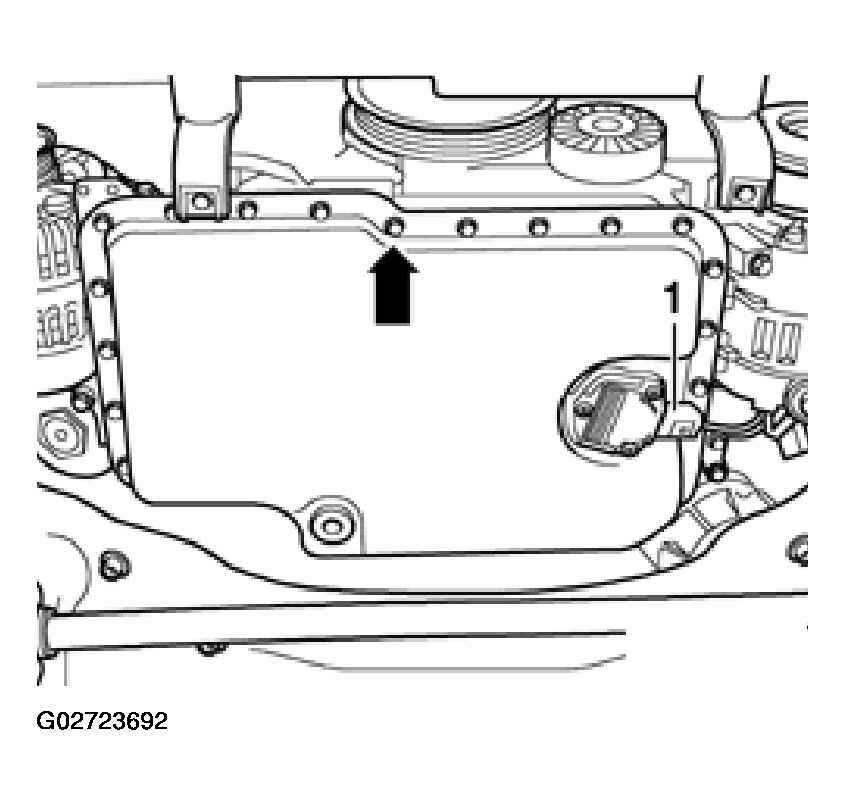

Disconnect connector -1- from oil level sensor.
Remove oil pan lower part -arrow-.

Fig 2: Removing Oil Pan Lower Part

Courtesy of AUDI OF AMERICA, INC.

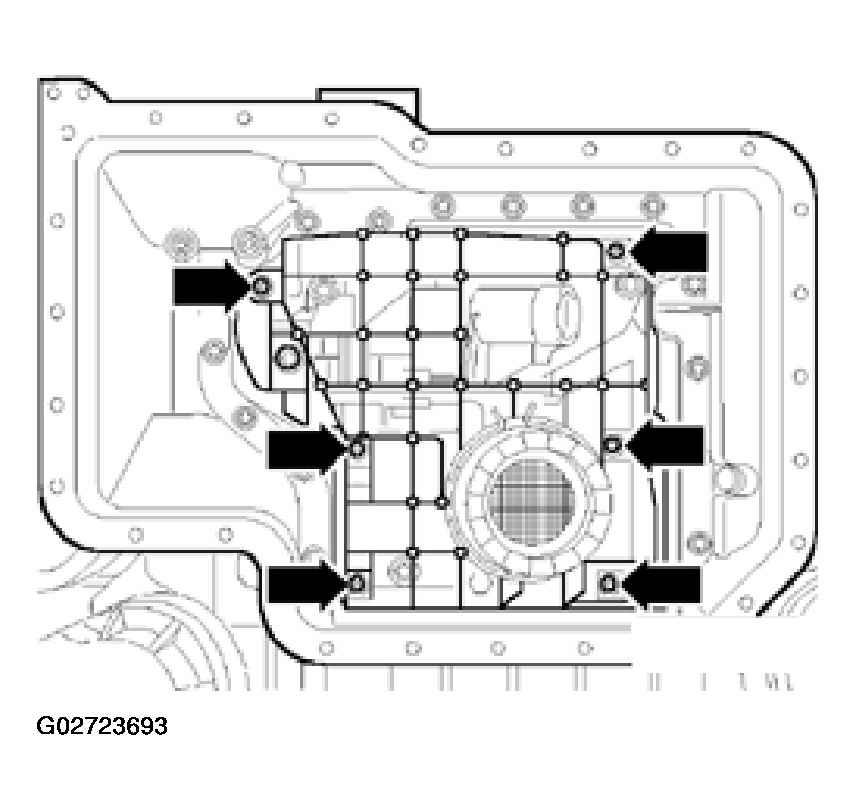

Remove oil grid -arrows-.

Fig 3: Removing Oil Grid

Courtesy of AUDI OF AMERICA, INC.

Loosen bolt for oil pump pulley.

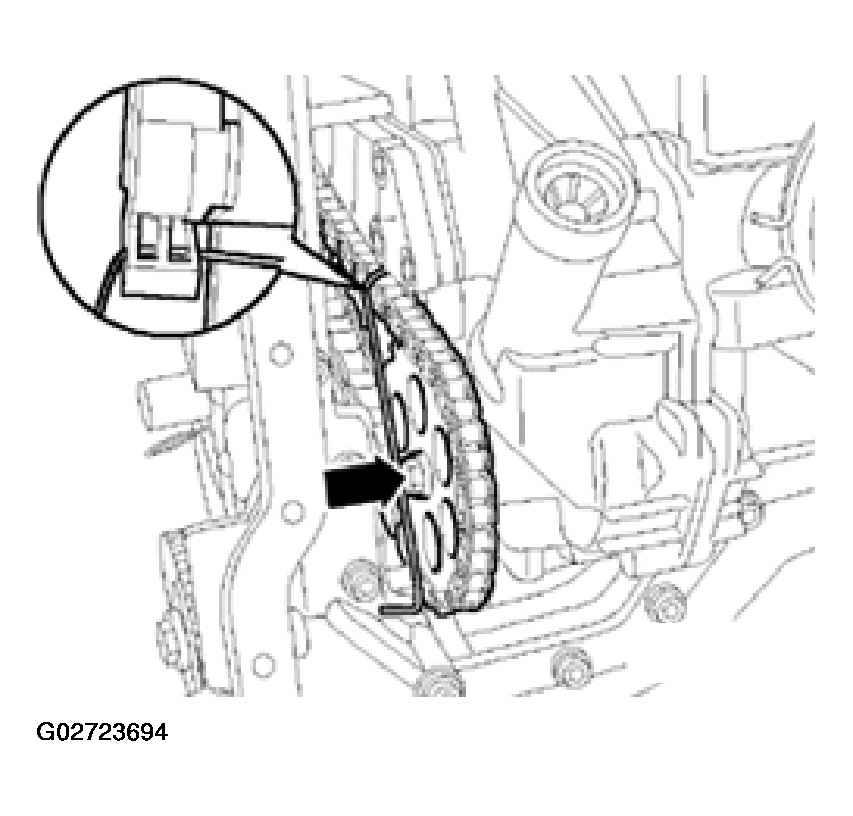

Secure chain tensioner with spring pin -arrow-.

Fig 4: Securing Chain Tensioner With Spring Pin
Courtesy of AUDI OF AMERICA, INC.
Remove oil pump pulley.

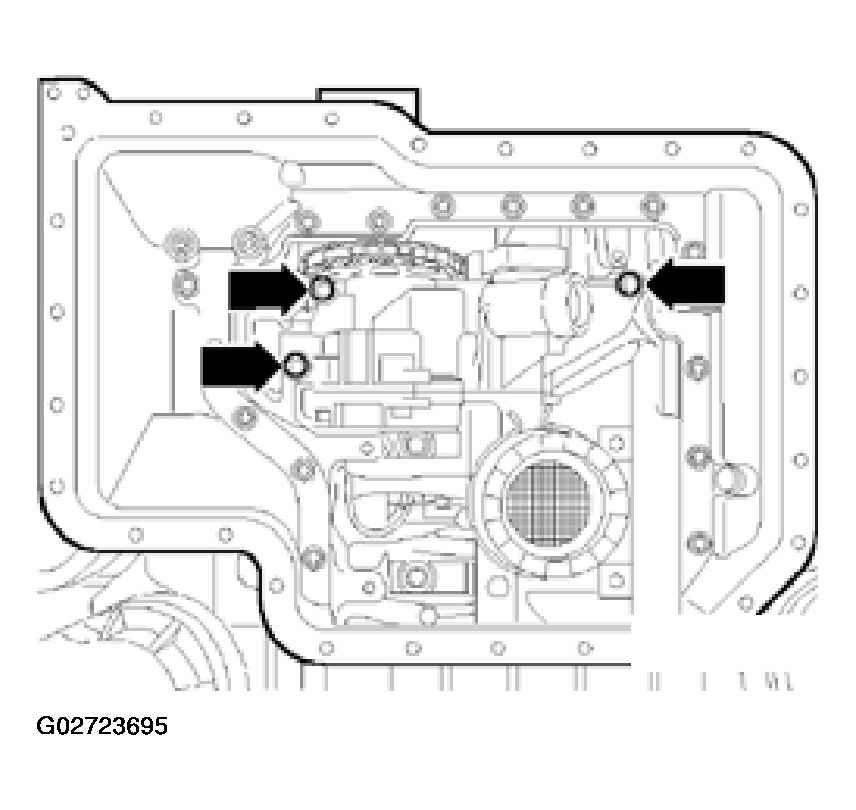

Remove oil pump and take out downward.

Fig 5: Removing Oil Pump And Take Out Downward

Courtesy of AUDI OF AMERICA, INC.
