Valve stem seals, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

To prevent damage to new seal, place plastic sleeve -A- on valve stem.
Lightly lubricate sealing lip and valve stem with oil.
Install valve stem seal -B- without oiling outside of seal, into seal driver 3129 and carefully push seal down over valve stem down to valve guide.

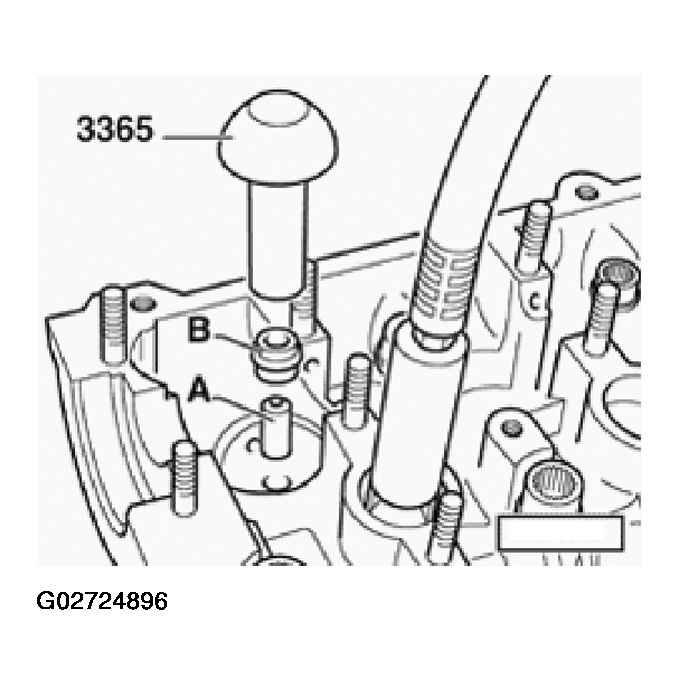

Fig 1: Placing Plastic Sleeve -A- On Valve Stem

Courtesy of AUDI OF AMERICA, INC.
