Bearing cap, applying sealer

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Coat gray surfaces of front and rear bearing caps for intake camshaft lightly with sealant AMV 100 001 02. Install bearing caps, observe dowel pins.
CAUTION: Part numbers are listed for reference only. Always check with your Parts department for the latest information.

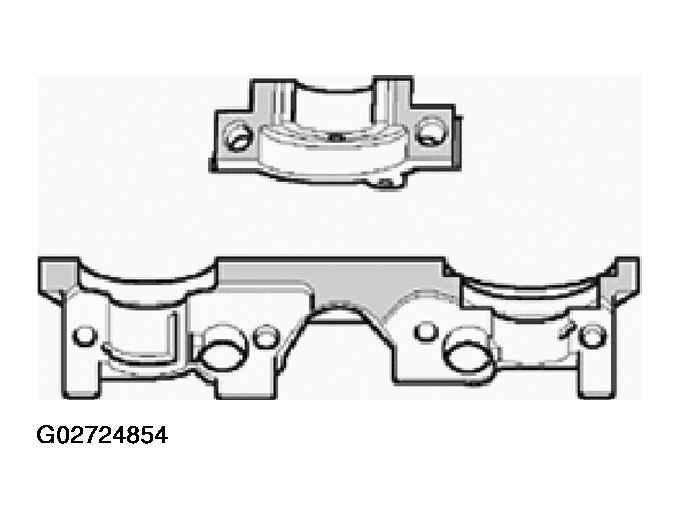

Fig 1: Applying Bearing Cap Sealer To Gray Surfaces

Courtesy of AUDI OF AMERICA, INC.
