Cylinder head cover, left, removing and installing: Installing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Install cylinder head cover in reverse order of removal but note the following:

NOTE: Replace cylinder head cover gaskets if damaged.

Apply a small amount of sealant D 545 300 A2 to sealing points - arrows- on upper surface of cylinder head. See Fig 1.
CAUTION: Part numbers are listed here for reference only. Always check with your Parts department for the latest information.

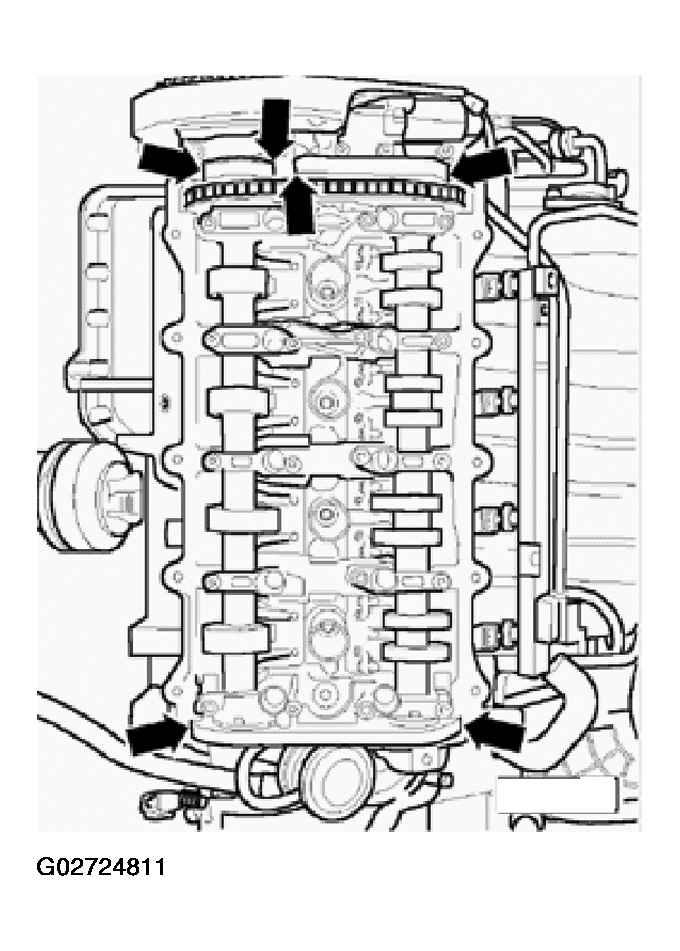

Fig 1: Locating Cylinder Head Cover Gasket Sealing Points

Courtesy of AUDI OF AMERICA, INC.

Tighten bolts for cylinder head cover crosswise and in sequence shown.

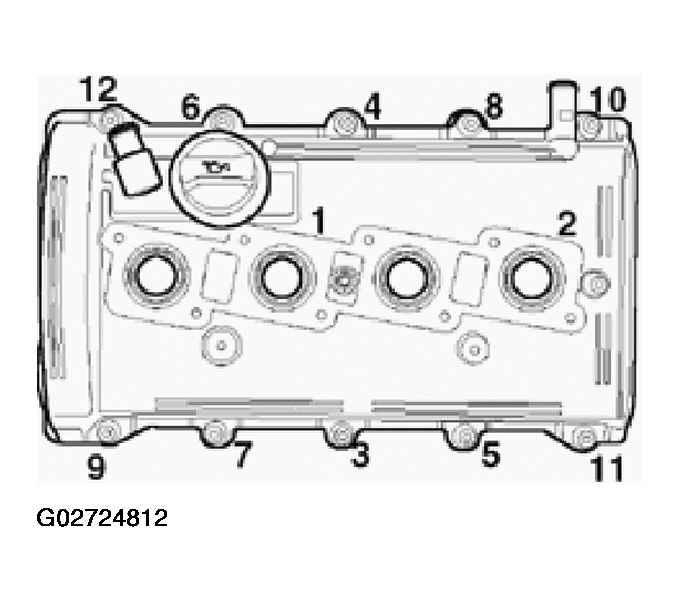

Fig 2: Cylinder Head Cover Bolt Tightening Sequence

Courtesy of AUDI OF AMERICA, INC.

TIGHTENING TORQUES: CYLINDER HEAD COVER, LEFT

Tightening torques	Nm/ft lb
Cylinder head cover to cylinder head	10/7
Ignition coil to cylinder head cover	10/7
