B - Drive plate
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.
- Hold crankshaft in position using 3242 crankshaft holder, see A - DUAL-MASS FLYWHEEL .

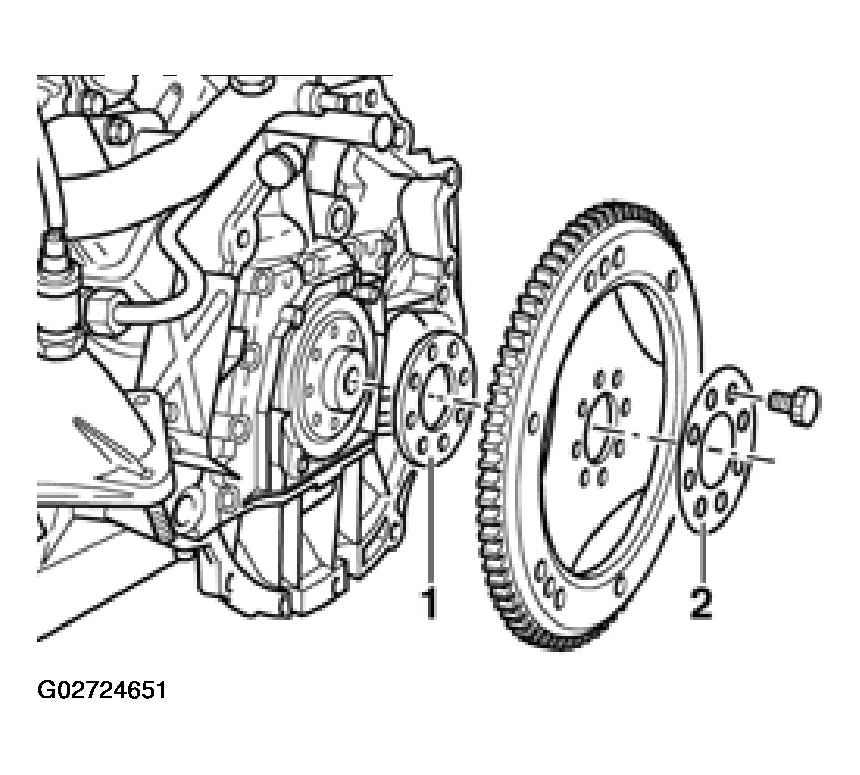

- Mark positions of shim -1- (in front of drive plate) and washer -2- (behind drive plate).
- Install drive plate together with washer -2- and shim -1-.
- Washer -2-: Part No. 035 105 303 A
- Shim -1-: 3.00 mm, Part No. 054 105 301
- Shim -1-: 4.00 mm, Part No. 054 105 202
- Always replace drive plate mounting bolts
- Drive plate to crankshaft bolts tightening torque: 60 (44 ft lb) + 1/4 -turn (90°)
CAUTION:
Part numbers are listed here for reference only. Always check with your Parts department for the latest information.
NOTE:
Short engines and exchange engines are supplied without a bushing in the crankshaft. For vehicles equipped with an automatic transmission, install the bushing before installing the drive plate.

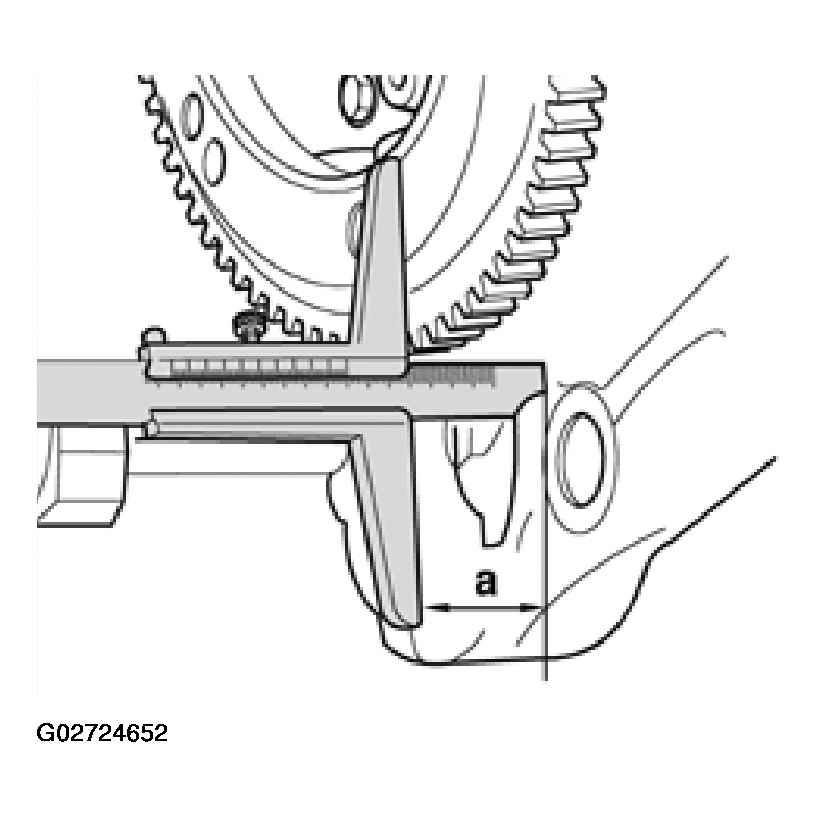

- Measure distance -a- at three points and calculate average value.
- Dimension -a-: approx. 12.3 mm (0.484 in.).
- If necessary, install different shim.
NOTE:
Before installing the engine, make sure the engine to transmission centering sleeves are installed in the engine block.
