Work procedure

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2004 Audi A6, 2003 Audi S6, 2003 Audi A6, 2002 Audi S6, and 2002 Audi A6. However, it is still accessible from the selected car via links, so may be relevant.

Switch ignition off.

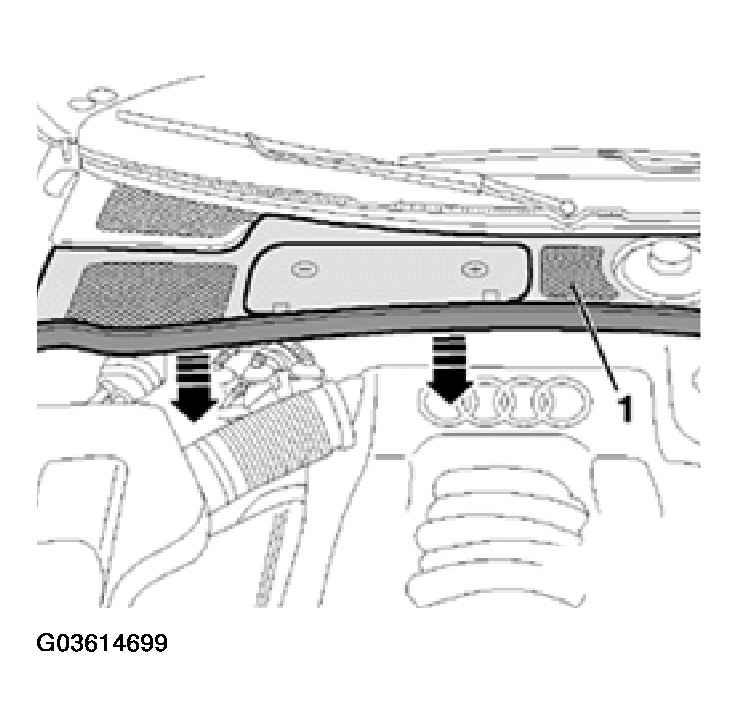

Pull off rubber seal of plenum chamber cover in direction of arrow.

Fig 1: Pulling Off Rubber Seal Of Plenum Chamber Cover
Courtesy of AUDI OF AMERICA, INC.
Remove cover -1- toward front.

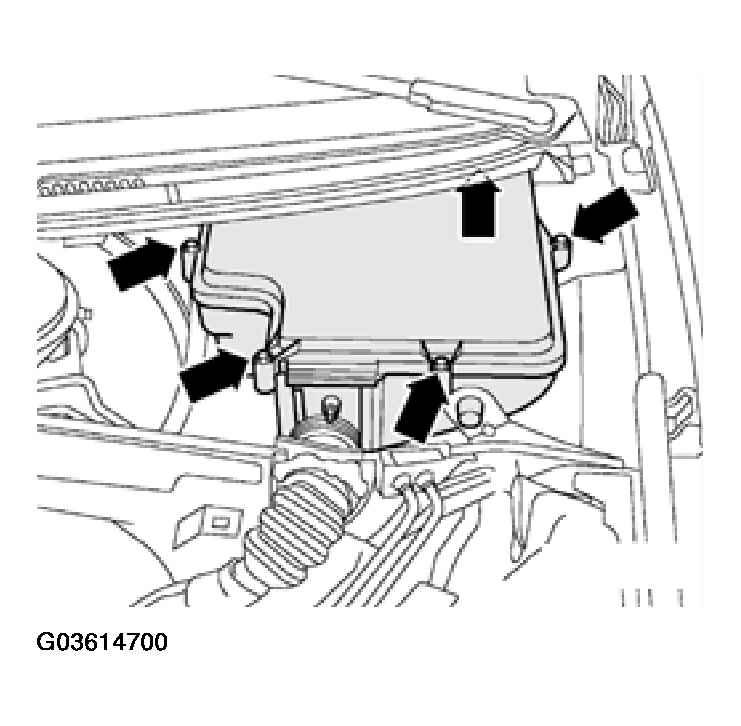

Remove cover for E-box, plenum chamber (arrows).

Fig 2: Removing Cover For E-Box, Plenum Chamber

Courtesy of AUDI OF AMERICA, INC.

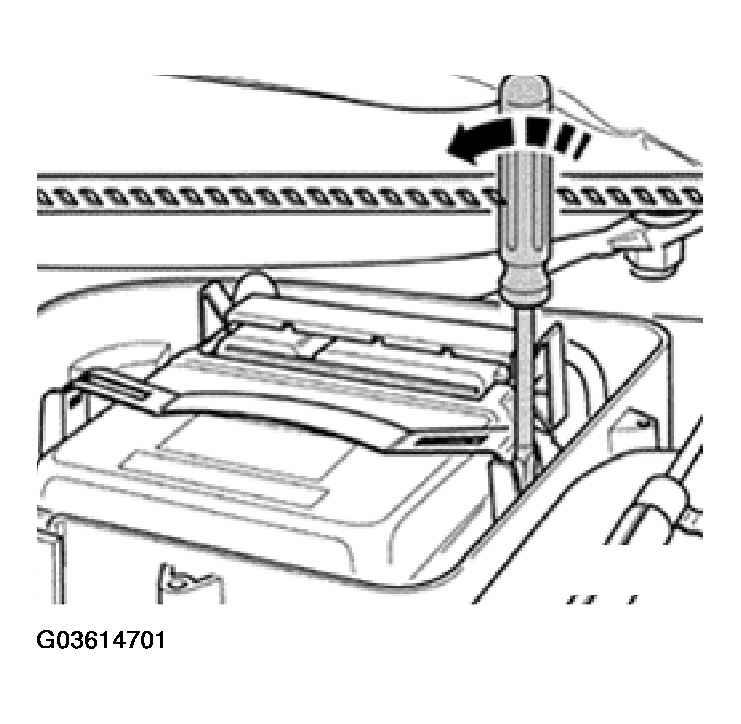

Using a screwdriver, carefully pry off retaining bracket (arrow).

Fig 3: Prying Off ECM Retaining Bracket

Courtesy of AUDI OF AMERICA, INC.

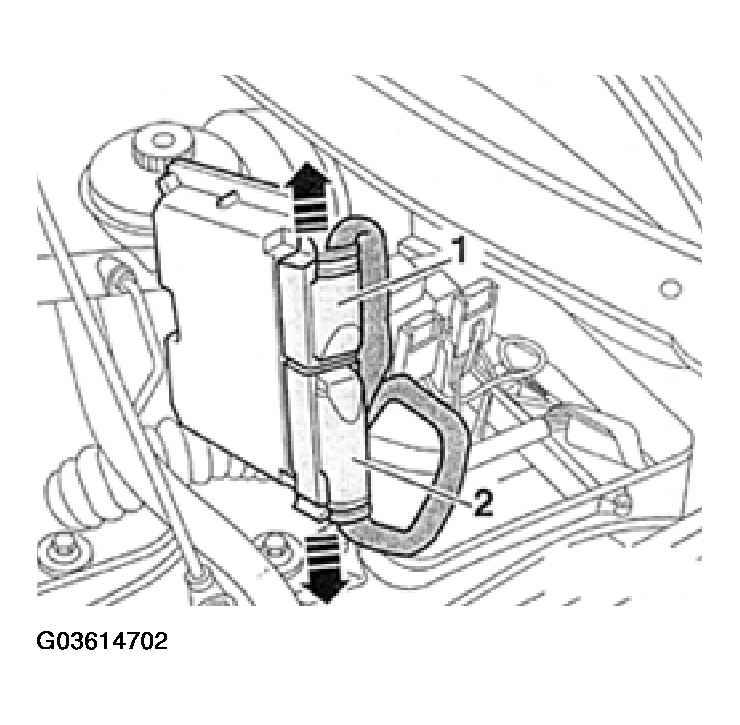

Disengage connector catches (arrows) and disconnect harness connectors -1- and -2- from control module.

Fig 4: Disconnecting ECM Harness Connectors
Courtesy of AUDI OF AMERICA, INC.

NOTE: Adaptation values are erased when connector is disconnected from the Engine Control Module (ECM), DTC memory content remains intact.

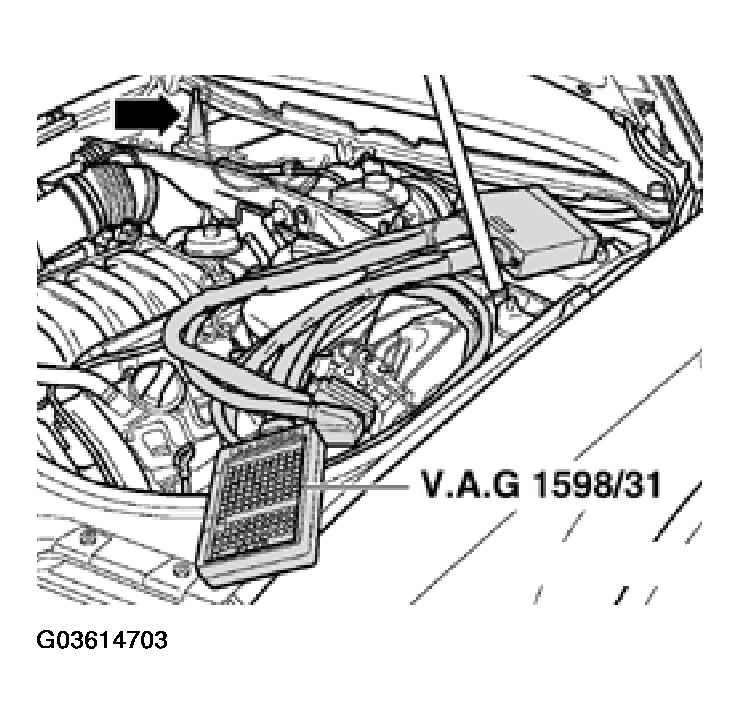

Connect e.g. VAG1598/31 test box to connectors of wiring harness. Clamp test box Ground (GND) clip to Ground (GND) (arrow). Relevant test procedures note whether Engine Control Module (ECM) should also be connected to the test box.

Fig 5: Connecting VAG1598/31 Test Box To Connectors Of Wiring Harness
Courtesy of AUDI OF AMERICA, INC.

CAUTION: To avoid damaging electronic components, set measuring range before connecting test leads and observe all test requirements.
