Overview - Tire Pressure Monitoring System
WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

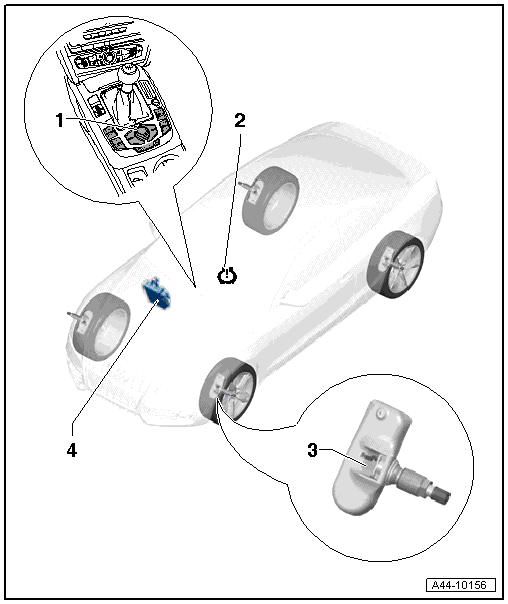

- Multimedia System Control Head -E380-
- Component location: the Multimedia System Control Head -E380- is installed in the center console.
- The "Tire Pressure Monitoring" function is selected by pressing the "CAR" function button and using the knob in the "Systems" car menu.
- Display in Instrument Cluster
- Refer to the Vehicle Diagnostic Tester
- Left Front Tire Pressure Monitoring Sensor -G222-, Right Front Tire Pressure Monitoring Sensor -G223-, Left Rear Tire Pressure Monitoring Sensor -G224- and Right Rear Tire Pressure Monitoring Sensor -G225-.
- Removing and installing. Refer to TIRE PRESSURE SENSOR -G222- / -G223- / -G224- / -G225-, REMOVING AND INSTALLING .
- If wheel positions on the vehicle are changed, tires are changed, tire pressure sensors are replaced or pressures are changed, control module must be readapted. Refer to TIRE PRESSURE MONITORING SYSTEM, SYSTEM DESCRIPTION .
- Tire Pressure Monitoring Control Module -J502-
- The system must be coded again if the Tire Pressure Monitoring Control Module -J502- is replaced. Refer to TIRE PRESSURE MONITORING SYSTEM, SYSTEM DESCRIPTION .
- Removing and installing. Refer to Tire Pressure Monitoring Control Module 2 -J502-, REMOVING AND INSTALLING .
