Directional Stabilization Assistance Control Module -J759- AND LENS SCREEN, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 23 other vehicles, including the 2017 Audi S5, 2017 Audi A5 Quattro, 2016 Audi S5, 2016 Audi A5 Quattro, and 2015 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the cover trim -1- down from the bracket in the direction of the -arrow-.

Fig 1: Identifying Cover Trim And Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Press the retaining clamp -1- in the direction of the -arrow- and remove the Directional Stabilization Assistance Control Module -J759- sideways and down from the bracket.

Fig 2: Pressing Retaining Clamp Forward And Removing Directional Stabilization Assistance Control Module J759 Sideways And Down From Bracket

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the electrical connector and remove the Directional Stabilization Assistance Control Module -J759-.

-- Press the clamps -arrows-, pull the lens screen out of the bracket and remove it toward the rear.

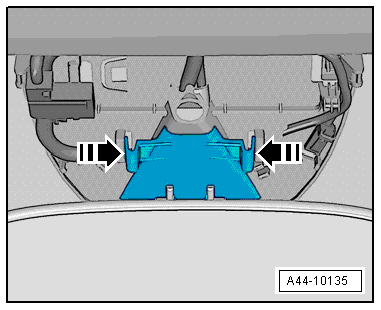

Fig 3: Pressing Clamps To Pull Lens Screen Out Of Bracket

Courtesy of AUDI OF AMERICA, LLC
