Tail Lamps And Bulb Holders, Removing And Installing

Removal

-- Turn off the ignition and remove the key.

-- Turn the headlamp switch to "0".

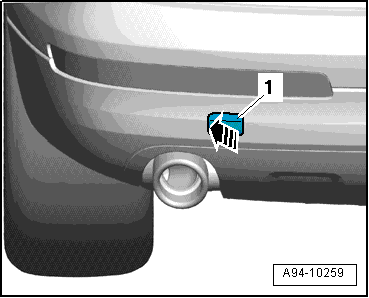

-- Press cover cap -1- on outer side -arrow- inward.

-- Allow cover cap to hang.

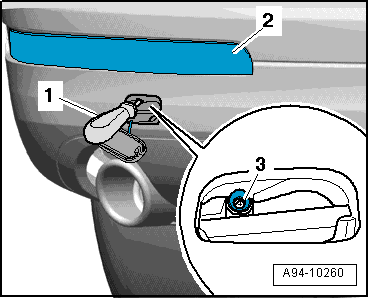

-- Remove screw -3- with a screwdriver -1-.

-- Remove the tail lamp -2- from the bumper cover.

-- Disconnect electrical connector on central connector.

Installation

• Tightening specifications, refer to TAIL LAMPS OVERVIEW .

Install in reverse order of removal. Note the following:

-- Tighten screw.

-- Press cover cap into bumper cover until it engages audibly.
