Left High Beam Headlamp Bulb -M30- / -M32- OR -L174- / -L175-, FROM MY 10, REMOVING AND INSTALLING

Removal

Fig 1: Identifying Housing Cover

Courtesy of AUDI OF AMERICA, LLC

-- Turn housing cover -1- counterclockwise in direction of -arrow- and remove from headlamp housing.

-- Turn the bulb -1- counterclockwise in direction of -arrow- and remove it from the housing.

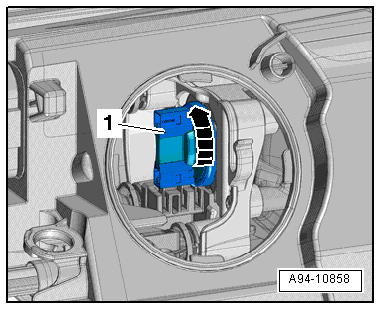

Fig 2: Turning Bulb -1- Counterclockwise

Courtesy of AUDI OF AMERICA, LLC

Installation

Install in reverse order of removal. Note the following:

-- Insert the new bulb into the housing without touching the bulb with bare hands.

-- Close housing cover by turning clockwise.
