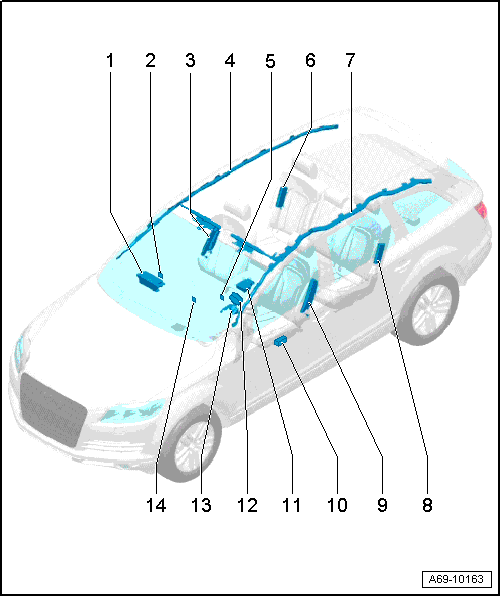

Airbag Overview
- Airbag Unit, Front Passenger Side
- Removing and Installing. Refer to FRONT PASSENGER AIRBAG UNIT OVERVIEW .
- Front Passenger Airbag Deactivation Key Switch -E224-
- Not applicable to NAR market.
- Front Passenger Side Airbag
- Removing and Installing. Refer to Driver Thorax Airbag Igniter -N199- AND Front Passenger Thorax Airbag Igniter -N200-, STANDARD POWER SEAT, REMOVING AND INSTALLING .
- Front Passenger Side Curtain Airbag
- Removing and Installing. Refer to Driver Head Curtain Airbag Igniter -N251- AND Front Passenger Head Curtain Airbag Igniter -N252- OVERVIEW .
- Airbag Indicator Lamp -K75-
- Installed location: inside the instrument cluster; refer to INSTRUMENT CLUSTER, REMOVING AND INSTALLING .
- Rear Passenger Side Airbag
- Removing and Installing. Refer to Driver Side Rear Thorax Airbag Igniter -N201- AND Passenger Side Rear Thorax Airbag Igniter -N202-, REMOVING AND INSTALLING .
- Driver Side Side Curtain Airbag
- Removing and Installing. Refer to Driver Head Curtain Airbag Igniter -N251- AND Front Passenger Head Curtain Airbag Igniter -N252- OVERVIEW .
- Rear Driver Side Airbag
- Removing and Installing. Refer to Driver Side Rear Thorax Airbag Igniter -N201- AND Passenger Side Rear Thorax Airbag Igniter -N202-, REMOVING AND INSTALLING .
- Driver Side Airbag
- Removing and Installing. Refer to Driver Thorax Airbag Igniter -N199- AND Front Passenger Thorax Airbag Igniter -N200-, STANDARD POWER SEAT, REMOVING AND INSTALLING .
- Battery Interrupt Igniter -N253-
- Removing and Installing. Refer to Battery Interrupt Igniter -N253-, REMOVING AND INSTALLING .
- Airbag Unit, Driver Side
- Removing and Installing. Refer to Driver Airbag Igniter -N95- AND Driver Airbag Igniter 2 -N250-, REMOVING AND INSTALLING .
- Airbag Spiral Spring/Return Spring With Slip Ring -F138-
- Removing and Installing. Refer to AIRBAG SPIRAL SPRING/RETURN SPRING WITH SLIP RING, REMOVING AND INSTALLING .
- Airbag Control Module
- Installation location: on the center tunnel.
- Removing and Installing. Refer to Airbag Control Module -J234-, REMOVING AND INSTALLING .
- Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- Installation location: in the center instrument panel vent.
- Removing and Installing. Refer to Front Passenger Airbag -Disabled- Indicator Lamp -K145-, REMOVING AND INSTALLING .
