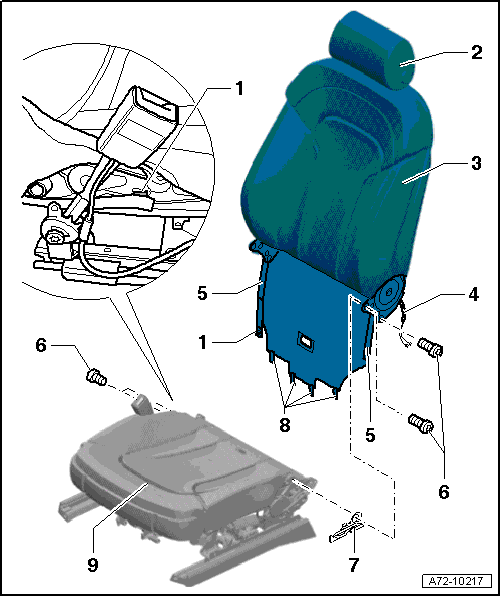

Front Backrest Overview
- Retaining Strip
- Engaged in seat pan -9-.
- Headrest
Vehicles without a rear seat entertainment screen:
- Removing and Installing. Refer to HEADRESTS WITH LOCKING MECHANISM, REMOVING AND INSTALLING .
Vehicles with a rear seat entertainment screen:
- Removing and Installing. Refer to HEADRESTS WITH A REAR SEAT ENTERTAINMENT SCREEN, REMOVING AND INSTALLING .
- Removing and Installing. Refer to HEADRESTS WITH LOCKING MECHANISM, REMOVING AND INSTALLING .
- Front Backrest
- Removing and Installing. Refer to FRONT BACKREST, REMOVING AND INSTALLING .
- Wiring Harness
- Retaining Strip
- Securing on tunnel side trim panel.
- Screw, Self-Locking
- 20 Nm
- Always replace if removed.
- Clean nut threads before installing new screws.
- Retainer
- Tabs
- To disengage seat pan spring mat -9-.
- Lower Seat Frame
