Oil Pump, Removing And Installing: Removal

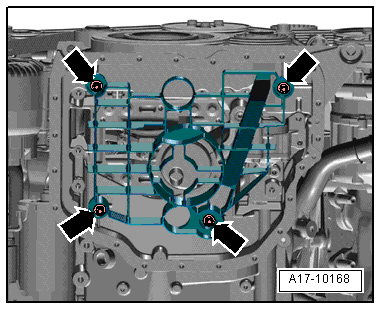

Fig 1: Oil Baffle And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the oil pan lower section. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and remove the oil baffle.

-- Remove the bolts -1- and -2-.

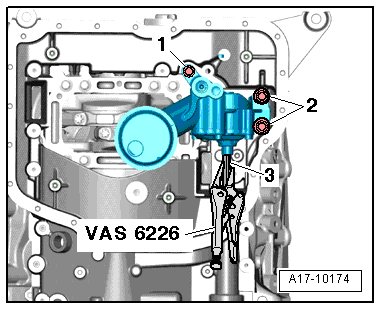

Fig 2: Oil Pump Mounting Bolts -1 & 2-, And Oil Pump Drive Shaft -3-

Courtesy of AUDI OF AMERICA, LLC

-- Hold the oil pump drive shaft -3- with Long Nose Locking Pliers VAS6226 and push it against the spring force.

-- Remove the oil pump.
