Oil Pressure Switch -F22-, Removing And Installing: Removal

WARNING: This page is about a different variant/trim than selected.

Fig 1: Locating Front/Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- On a vehicle with air suspension, activate vehicle lift mode. Refer to VEHICLE LIFT MODE .

-- Remove the front noise insulation -1-. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Disconnect the connector -1-.

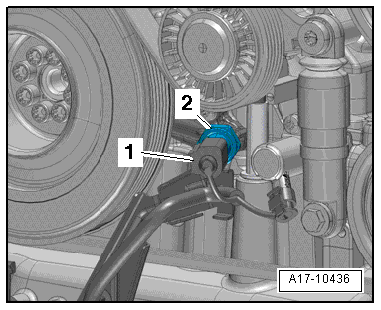

Fig 2: Locating Oil Pressure Switch -F22-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Lay a cloth below to catch the draining engine oil.

-- Remove the Oil Pressure Switch -F22- -item 2-.
