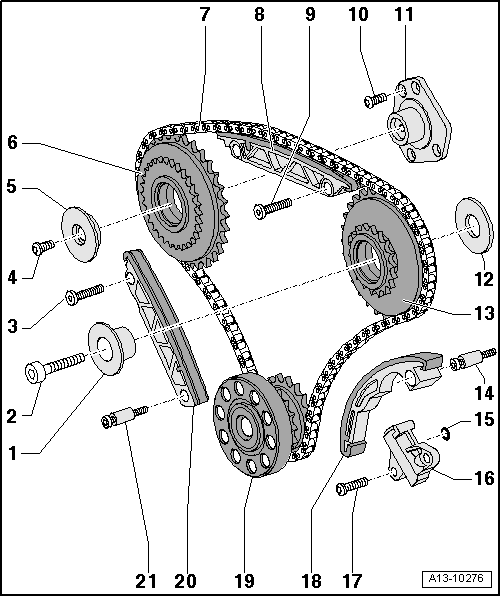

Timing Mechanism Drive Chain Overview
WARNING: This page is about a different variant/trim than selected.
- Mounting Pin for the Drive Chain Sprocket
- Bolt
- 45 Nm
- Bolt
- 5 Nm + 90°
- Replace
- Bolt
- 5 Nm + 90°
- Replace
- Drive Chain Sprocket Thrust Washer
- Drive Sprocket for Left Timing Chain
- Power Take-Off Drive Chain
- Before Removal, mark the direction of rotation with paint.
- Removing and Installing. Refer to TIMING MECHANISM DRIVE CHAIN, REMOVING AND INSTALLING .
- Guide Rail
- Pay attention to the installed position.
- Bolt
- 5 Nm + 90°
- Replace
- Bolt
- 5 Nm + 90°
- Replace
- Mounting Bracket for Drive Sprocket
- Thrust Washer
- Drive Sprocket for Right Timing Chain
- Mounting Pin
- 12 Nm
- Insert with locking compound.
- O-Ring
- Replace
- Chain Tensioner
- Bolt
- 12 Nm
- Tensioning Rail
- Crankshaft
- With chain sprockets.
- Guide Rail
- Mounting Pin
- 12 Nm
- Insert with locking compound.
