Balance Shaft Overview

WARNING: This page is about a different variant/trim than selected.

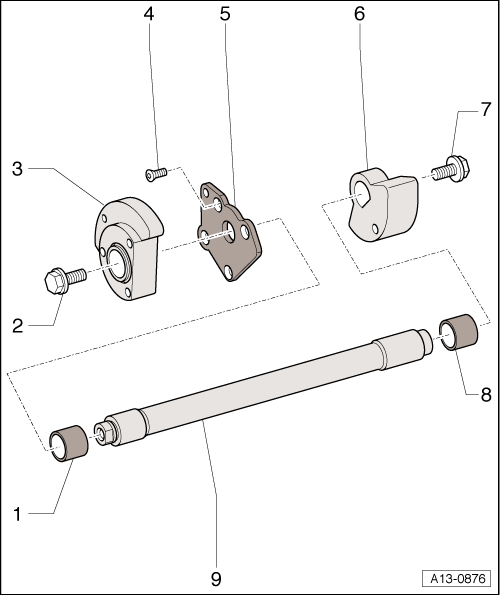

Fig 1: Balance Shaft Overview
GWWA13-0876Courtesy of AUDI OF AMERICA, LLC
  1. Friction Bearing
  2. Bolt
    • 60 Nm
    • When loosening or tightening, counterhold with the Diesel Injection Pump Locking Pin 3359.
  3. Balance Shaft Transmission Side
  4. Bolt
    • 9 Nm
    • Insert with locking compound.
  5. Gear Carrier
  6. Balance Shaft Belt Pulley Side
  7. Bolt
    • 60 Nm
    • When loosening or tightening, counterhold with the Diesel Injection Pump Locking Pin 3359.
  8. Friction Bearing
  9. Balance Shaft
