Right Intermediate Pipe, Removing And Installing: Removal

WARNING: This page is about a different variant/trim than selected.

-- Remove the turbocharger. Refer to TURBOCHARGER, REMOVING AND INSTALLING .

-- Remove screws -1- and -2- and nuts -3- and -4- and remove the right intermediate pipe.

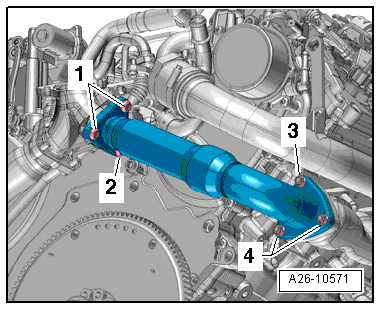

Fig 1: Right Intermediate Pipe, Removing And Installing

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The installation location is shown with the engine removed.
