Left Intermediate Pipe, Removing And Installing: Removal

-- Remove the primary catalytic converter. Refer to PRIMARY CATALYTIC CONVERTER, REMOVING AND INSTALLING .

-- Remove the rear coolant pipe. Refer to REAR COOLANT PIPE, REMOVING AND INSTALLING .

-- Remove the exhaust gas recirculation auxiliary cooler. Refer to EGR AUXILIARY COOLER, REMOVING AND INSTALLING .

-- Remove the bolts -3- and -4- and remove the exhaust gas recirculation pipes.

Fig 1: Exhaust Gas Recirculation Pipes And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air guide hose by loosening the hose clamps -arrows-.

Fig 2: Identifying Charge Air Hose Clamps -Arrows- And Hose

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws and nuts -arrows- and remove the left intermediate pipe.

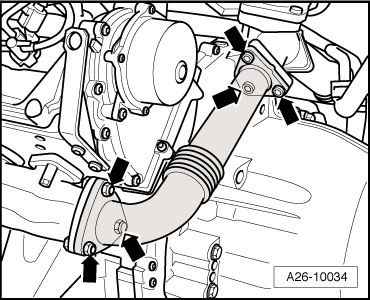

Fig 3: Identifying Nuts And Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC
