Left Exhaust Manifold, Removing And Installing: Removal

WARNING: This page is about a different variant/trim than selected.

-- Remove the left intermediate pipe. Refer to LEFT INTERMEDIATE PIPE, REMOVING AND INSTALLING .

NOTE:

Place a cloth underneath to soak up any escaping power steering fluid.

Vehicles through 05/2010:

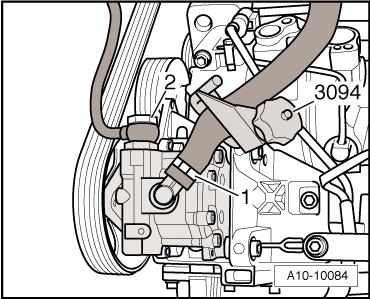

Fig 1: Identifying Hydraulic Hose, Hydraulic Pressure Line & Hose Clamps 3094

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the power steering pump hydraulic hose and Hose Clamps - Up To 25mm 3094.

-- Loosen the hose clamp -1- and remove the power steering fluid hose.

NOTE:

Ignore -item 2-.

-- Remove the banjo bolt -1- and screw -2- and lay the power steering fluid line to the side.

Fig 2: Banjo Bolt -1- And Bolt -2-

Courtesy of AUDI OF AMERICA, LLC

Vehicles from 06/2010:

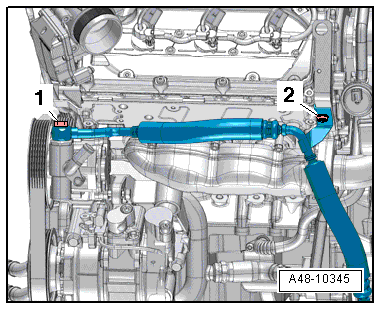

Fig 3: Identifying Power Steering Pump Hydraulic Hose -1- And Bolts -2-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Place a cloth underneath to soak up any escaping power steering fluid.

-- Clamp off the power steering pump hydraulic hose -1- with a Hose Clamps - Up To 25mm 3094.

-- Remove the bolts -2- and move the hydraulic line to the rear.

All Vehicles:

-- Seal any open lines and connections with a clean plug from the Engine Bung Set VAS 6122.

-- Remove nuts -arrows- and remove the exhaust manifold.

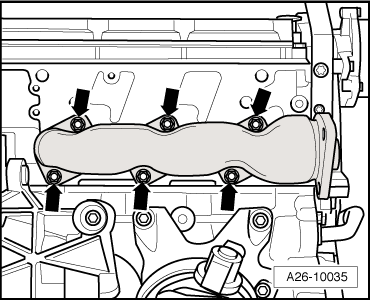

Fig 4: Left Exhaust Manifold Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC
