EGR Temperature Sensor -G98-, REMOVING AND INSTALLING: Removal

WARNING: This page is about a different variant/trim than selected.

Fig 1: Removing Engine Cover

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pull the engine cover off the 4 bolts one after the other -arrows-.

-- Remove the -1- EGR Temperature Sensor -G98- orange connector from the bracket, disconnect it and then free up the electrical wire.

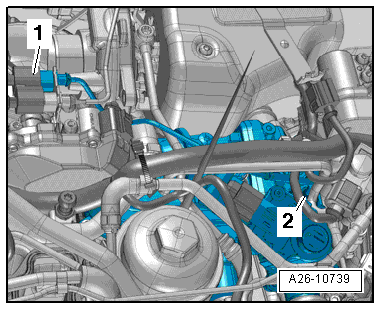

Fig 2: Identifying Orange Connector -1- And EGR Temperature Sensor -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the EGR Temperature Sensor -G98- -2- using the Union Nut Socket T40055.
