Overview - Intake Manifold
WARNING: This page is about a different variant/trim than selected.
NOTE:

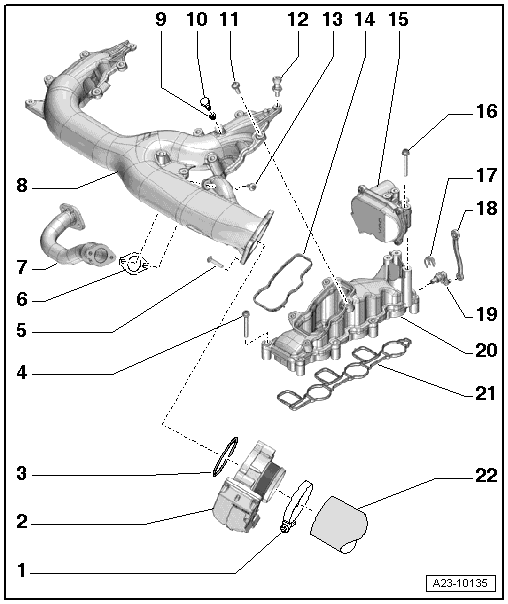

The illustration shows the intake manifold upper section with the lower left section.
- Clamp
- 5.5 Nm
- Reinforced
- Throttle Valve Control Module -J338-
- 9 Nm
- O-ring
- Replace
- Bolt
- 9 Nm
- Tighten diagonally in steps
- Bolt
- 9 Nm
- Gasket
- Replace
- Connecting Pipe for Exhaust Gas Recirculation
- Intake Manifold Upper Part
- Removing and installing. Refer to INTAKE MANIFOLD UPPER SECTION, REMOVING AND INSTALLING .
- Seal
- Replace
- Drain Plug
- 10 Nm
- Bolt
- 9 Nm
- Engine Cover Bolt
- 5 Nm
- Bolt
- 9 Nm
- Gasket
- Check and replace if damaged
- Intake Flap Motor
- Cylinder bank 1 (right): Intake Flap Motor -V157-
- Cylinder bank 2 (left): Intake Flap Motor 2 -V275-
- Bolt
- 10 Nm
- Clip
- Connecting Rod
- Support
- Intake Manifold Lower Section
- Gasket
- Check and replace if damaged
- Air Guide Hose
- Must be free of oil and grease when installing
