Intermediate Flange, Removing And Installing: Removal

Fig 1: Connecting Pipe And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear coolant pipe REAR COOLANT PIPE, REMOVING AND INSTALLING .

-- Remove the primary catalytic converter. Refer to PRIMARY CATALYTIC CONVERTER, REMOVING AND INSTALLING .

-- Remove the exhaust gas recirculation auxiliary cooler. Refer to EGR AUXILIARY COOLER, REMOVING AND INSTALLING .

-- Remove the bolts -3- and -4- and remove the exhaust gas recirculation pipes.

-- Remove the bolts -1 and 2- and -arrows- and remove the intermediate flange.

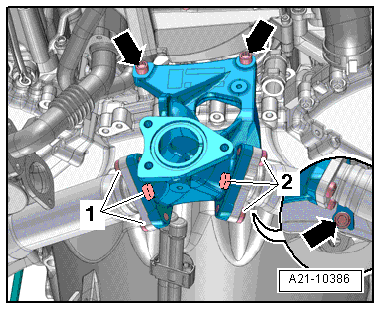

Fig 2: Bolts -1 And 2- And -Arrows-

Courtesy of AUDI OF AMERICA, LLC
