Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING: Removal

WARNING: This page is about a different variant/trim than selected.

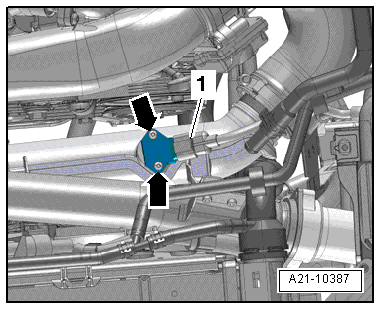

Fig 1: Charge Air Pressure Sensor
GWWA21-10387Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -1-.

-- Remove the bolts -arrows- and remove the Charge Air Pressure Sensor -G31- from the air duct pipe.
