Charge Air Cooler Overview
WARNING: This page is about a different variant/trim than selected.
NOTE:

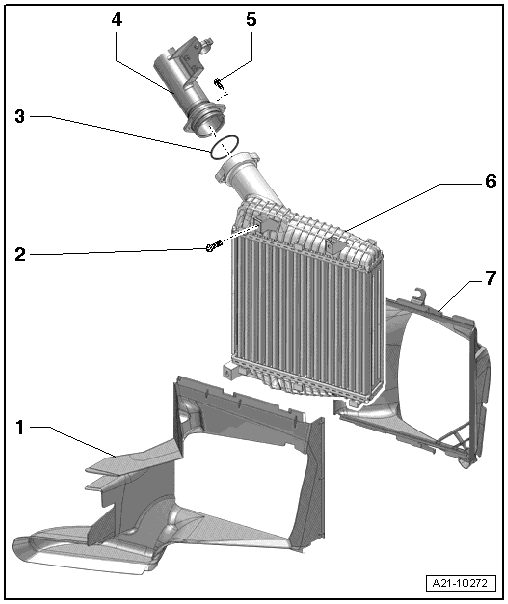

The illustration shows the left charge air cooler.
- Front Air Guide
- Attached to the charge air cooler.
- Unclip it to the side to remove.
- Bolt
- Tightening specification: 9 Nm
- O-Ring
- Replace if damaged or leaking.
- Air Guide Pipe
- Bolt
- Tightening specification: 9 Nm
- Charge Air Cooler
- Removing and Installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
- Rear Air Guide
- Unlock the locking mechanisms to remove.
