Charge Air Cooler Bypass Control Unit -J865-, REMOVING AND INSTALLING: Removal

Fig 1: Locating Front/Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- On a vehicle with air suspension, activate vehicle lift mode. Refer to VEHICLE LIFT MODE .

-- Remove the front noise insulation -1-. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

Fig 2: Lower Air Duct Pipe, Removal & Installation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Lift the clips -1-, loosen the clamp -3- and -4- and remove the air duct hoses.

-- Loosen the clamp -2- and remove the air duct tube.

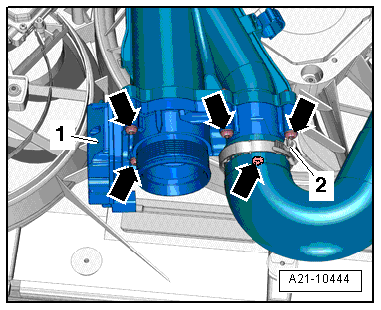

Fig 3: Hose Clamp -2-, Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -arrows- and remove the Charge Air Cooler Control Unit -J865- -1-.
