Charge Air Cooler, Removing And Installing: Removal

Fig 1: Locating Front/Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- On a vehicle with air suspension, activate vehicle lift mode. Refer to VEHICLE LIFT MODE .

-- Remove the front noise insulation -1-. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the front bumper cover. Refer to FRONT BUMPER, REMOVING AND INSTALLING .

-- Pull the cover over the radiator -arrows-, to do this disconnect the lower coolant hose.

Fig 2: Cover Over Radiator -Arrows-

Courtesy of AUDI OF AMERICA, LLC

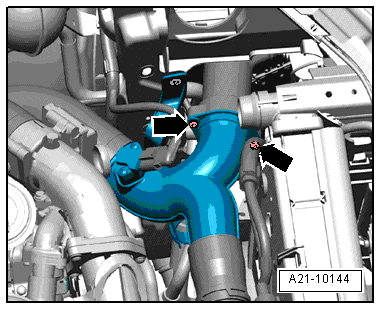

-- Remove the bolts -arrows-.

Fig 3: Charge Air Cooler Upper Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the air duct -1- from the charge air cooler.

Fig 4: Locating Charge Air Cooler Air Duct -1-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws and nuts -1, 2 and 3-.

Fig 5: Charge Air Cooler Bolts And Fasteners -1, 2 And 3-

Courtesy of AUDI OF AMERICA, LLC

-- Open the clip -1- and remove the charge air cooler.

Fig 6: Charge Air Cooler -1- And Lower Air Guide Pipe

Courtesy of AUDI OF AMERICA, LLC
