Air Duct Pipes And Air Duct Hoses Overview

WARNING: This page is about a different variant/trim than selected.
NOTE:

Follow all the rules of cleanliness. Refer to FUEL SUPPLY, INJECTION SYSTEM AND CHARGING SYSTEM CLEAN WORKING CONDITIONS .

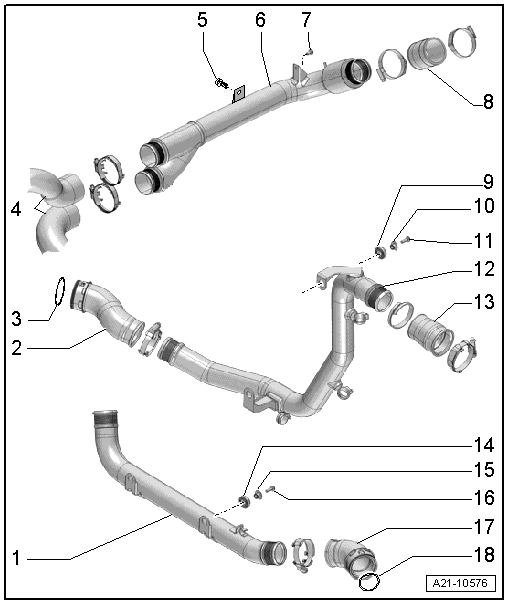

Fig 1: Air Duct Pipes And Air Duct Hoses Overview
GWWA21-10576Courtesy of AUDI OF AMERICA, LLC
  1. Lower Air Duct Pipe
  2. Air Guide Hose
  3. O-Ring
    • Replace
  4. Air Guide Hoses
  5. Bolt
    • Tightening specification: 9 Nm
  6. Right Air Guide Pipe
  7. Bolt
    • Tightening specification: 9 Nm
  8. Air Guide Hose
  9. Grommet
  10. Sleeve
  11. Bolt
    • Tightening specification: 5.5 Nm
  12. Air Duct Pipe in the Center
  13. Air Guide Hose
  14. Grommet
  15. Sleeve
  16. Bolt
    • Tightening specification: 5.5 Nm
  17. Air Guide Hose
    • From the right charge air cooler.
    • Removal. Refer to Figure.
    • Installation. Refer to Figure.
  18. O-Ring
    • Replace
