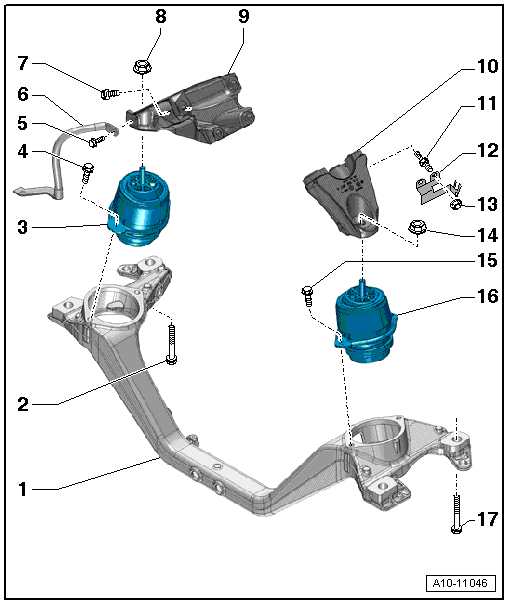

SUBFRAME Overview
WARNING: This page is about a different variant/trim than selected.
- Engine Support
- Removing and Installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
- Bolt
- 120 Nm + 180°
- Replace
- Right Engine Mount
- Removing and Installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- Bolt
- Tightening specification: 60 Nm
- Bolt
- Tightening specification: 15 Nm
- Ground strap
- Bolt
- Tightening specification: 50 Nm + 90°
- Replace
- Nut
- Tightening specification: 75 Nm
- Right Engine Support
- Left Engine Support
- Double Bolt
- Tightening specification: 50 Nm + 90°
- Replace
- Bracket
- For the connector
- Nut
- Tightening specification: 23 Nm
- Nut
- Tightening specification: 75 Nm
- Bolt
- Tightening specification: 60 Nm
- Left Engine Mount
- Removing and Installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
- Bolt
- 120 Nm + 180°
- Replace
