Engine Support, Removing And Installing: Removal

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Steering Gear Heat Shield -A-

Courtesy of AUDI OF AMERICA, LLC

-- Remove left and right engine bracket, refer to ENGINE MOUNT, REMOVING AND INSTALLING .

-- Remove the 2 bolts and then remove the steering gear heat shield -A-.

CAUTION:

Risk of distorting airbag spiral spring.

Separate universal joint from steering gear only when front wheels are in straight ahead position.
Secure steering wheel with adhesive tape to prevent position of steering wheel and steering gear from changing.

-- Remove the bolt -B- for the universal joint. .

-- Remove universal joint from steering gear.

-- Remove the nut -1- on the right longitudinal member and disconnect the ground wire form the threaded pin.

Fig 2: Identifying Ground (GND) Cable On Longmember

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right coupling rod nuts -arrow- on the stabilizer bar.

Fig 3: Identifying Nut -Arrows- Securing Coupling Rod

Courtesy of AUDI OF AMERICA, LLC

Vehicles through 05/2010:

Fig 4: Identifying Fuel Cooler Pump Screw -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screw -arrow- and move the Fuel Cooler Pump -V166- to the side.

-- Remove the bolts -arrows-.

Fig 5: Clip -1-

Courtesy of AUDI OF AMERICA, LLC

-- Lift the clips -1-, loosen the hose clamps -3- and -4- and remove the air duct hoses.

-- Remove the air duct pipe.

NOTE:

Ignore -item 2-.

Vehicles from 06/2010:

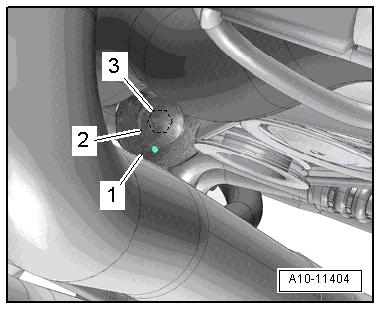

Fig 6: Identifying Bolt -3- And Balance Weight -1- And Cover -2

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover -2-.

-- Remove the bolt -3- and the balance weight -1-.

All Vehicles:

Fig 7: Subframe, Engine Carrier, Crossmember And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Mark location of subframe and engine carrier to longitudinal members with a felt-tip pen.

WARNING:

The subframe could cause an accident if it is not secured.

The subframe bolts -2- and the transmission carrier bolts -1- must never be loosened.

-- Remove the bolts -3- and -4- then lower the subframe with the front engine carrier.

-- Remove engine carrier forward.
