Engine Mount, Removing And Installing: Removal

WARNING: This page is about a different variant/trim than selected.

Fig 1: Air Filter Housing, Mass Airflow Sensor -G70- And Intake Duct

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ribbed belt tensioner. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the air guide hose by loosening the hose clamps -arrows-.

Fig 2: Identifying Charge Air Hose Clamps -Arrows- And Hose

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right engine mount nuts -arrow-.

Fig 3: Identifying Engine Mount Bracket To Engine Mount Nut -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left front wheel housing liner. Refer to Wheel Housing Liners .

Fig 4: Left Front Wheel Housing Liner And Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Remove the nuts and screws -arrows- on the refrigerant line clamps.

Fig 5: Identifying Coolant Line Retaining Clamp Nuts And Bolts -Arrows-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

To position the Engine Support Bridge - Engine Support 1910-222A/19 on the longitudinal members, move the refrigerant lines slightly to the side.

-- Mount the Engine Support Bridge10-222A with the Engine Supports T40091/3 and 2 spindles onto bolted fender edges.

Fig 6: Mounting Engine Support Bridge 10-222A With Engine Supports T40091/3 Onto Fender Edges

Courtesy of AUDI OF AMERICA, LLC

The spindles are positioned forward.

-- Attach both spindles to the rear engine lifting eyes.

-- Install the other components of the Engine Support Bridge10-222Aas illustrated; when doing this, place the Engine Support Bridge - Engine Support 1910-222A/19 on the notches in the longitudinal members.

Fig 7: Identifying Rail With Holes T40091/2, Mounts T40093/5 And Movable Joints T40093/4

Courtesy of AUDI OF AMERICA, LLC

-- Slide Support T40091/2 into both Connectors T40093/5 with Slide T40093/4.

WARNING:

Risk of accident due to loose supporting elements.

Secure the Support T40091/2 with connector pins and Slide T40093/4.

-- Install the Engine Support T10014 into the hole in the ribbed belt tensioning element.

Fig 8: Identifying Engine Support T10014

Courtesy of AUDI OF AMERICA, LLC

-- Remove eyelet for Engine Sling 2024A.

Fig 9: Identifying Engine Sling 2024A And Bracket 2024A/1

Courtesy of AUDI OF AMERICA, LLC

-- Install the bolt -1- into the center hole in the engine sling and secure it with a cotter pin.

-- Attach the engine sling bolt to the front spindle of the engine support bridge.

-- Install the Engine Sling - Engine Bracket 2024A/1 to the left side of the engine sling.

-- Attach the Engine Sling 2024A to the front right engine lifting eye and to the Engine Support T10014.

WARNING:

Risk of accident due to unsecured engine sling.

Secure the mounting hooks and pins on the engine support bridge using securing pins -arrows-.

-- Raise engine until engine supports are above engine bracket threaded pins and evenly tension both spindles to achieve even weight distribution.

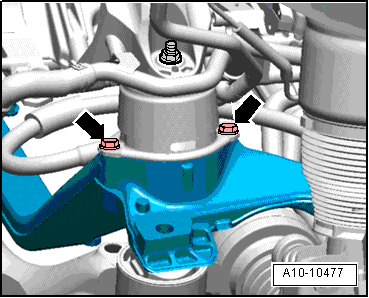

-- Remove the left and right bolts -arrows- and remove the engine mount from the engine carrier.

Fig 10: Identifying Engine Bracket Bolts At Left And Right

Courtesy of AUDI OF AMERICA, LLC
