Engine From 06/2010, Removal

WARNING: This page is about a different variant/trim than selected.

Special tools and workshop equipment required

Pry Lever 80 - 200
Used Oil Collection And Extraction Unit SMN372500
Step Ladder VAS 5085
Engine Bung Set VAS 6122
Scissor Lift Table VAS6131A with Scissor Lift Table - Audi Set VAS6131/10as well as Scissor Lift Table - A8 Set VAS6131/11, Scissor Lift Table - Q7 Set VAS6131/13 and qty. 3 Scissor Lift Table - Audi Set - Mounting Pin VAS6131/10-2
Shop Crane - Drip Tray VAS6208
Hose Clamps - Up To 25mm 3094
Hose Clip Pliers VAS6362
Puller - Ball Joint T10187

Procedure

NOTE:

With lock carrier installed, engine is removed downward with transmission and subframe.

When Installation, bring all cable ties back to same positions.

Collect escaping coolant in a clean container for disposal or reuse.

-- On a vehicle with air suspension, activate vehicle lift mode. Refer to VEHICLE LIFT MODE .

NOTE:

To rotate the driveshaft freely, move the selector lever into "N".

Fig 1: Pry Cover -1- With 80 - 200 From Floor Covering.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of causing damage to other electronic components when disconnecting the battery.

Complete the steps for disconnecting the battery.
Pay attention the to waiting period for vehicles with urea injection.

-- Disconnect the ground cable -4- from the battery terminal. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367- FROM MY 09, REMOVING AND INSTALLING .

-- Empty the coolant circuit. Refer to A/C System with Refrigerant R134a.

-- Extract the power steering oil from the reservoir with the Used Oil Collection And Extraction Unit SMN372500.

WARNING:

Risk of scalding due to hot steam and hot coolant.

The coolant system is under pressure when the engine is warm.
Cover the coolant reservoir cap with a cloth and then open it slowly to release the pressure.

-- Open the coolant reservoir cap.

-- Remove the left and right front wheels.

Fig 2: Locating Front/Rear Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the noise insulation -1- and -2-. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove left and right front wheel housing liners. Refer to Wheel Housing Liners .

Fig 3: Left Front Wheel Housing Liner And Fasteners

Courtesy of AUDI OF AMERICA, LLC

-- Place the Shop Crane - Drip Tray VAS6208 under the engine.

Fig 4: Identifying Coolant Hose -Arrow- To Left Coolant Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Remove the coolant hose from the left coolant pipe by loosening the hose clamp -arrow- and letting the coolant drain out.

-- Disconnect the connector -3- from the Engine Coolant Temperature Sensor on Radiator Outlet -G83-.

Fig 5: Identifying Clamp -1- & Electrical Connector -3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the right lower coolant hose from the radiator by lifting the clamp -1- and let the coolant drain out.

NOTE:

Ignore item -2-.

-- Loosen the hose clamps, remove the coolant hoses from the heat exchanger -arrows- and let the coolant drain out.

Fig 6: Identifying Coolant Hose Clamps

Courtesy of AUDI OF AMERICA, LLC

-- Remove the coolant hose from the right coolant pipe by loosening the hose clamp -arrow- and letting any remaining coolant drain out.

Fig 7: Identifying Coolant Hose -Arrow- And Connector Coupling To Right Coolant Pipe

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pull the engine cover off the 4 bolts one after the other -arrows-.

Fig 8: Removing Engine Cover

Courtesy of AUDI OF AMERICA, LLC

-- Pull the cover over the radiator -arrows-, to do this disconnect the lower coolant hose.

Fig 9: Cover Over Radiator -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the clamp -1- and remove the coolant hose.

Fig 10: Removing Coolant Hose At Hose Clamp -1-

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -2-.

-- Open the cover over the Terminal 30 Wire Junction 2 -TV22- -arrow-.

Fig 11: Opening Cover Over Terminal 30 Wire Junction 2 -TV22- -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1-.

-- Remove the bolts -2- from the Battery Jump Start Terminal -U6- and free up the electric wire.

-- Remove the air guide hose by loosening the hose clamps -arrows-.

Fig 12: Identifying Charge Air Hose Clamps -Arrows- And Hose

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

Fig 13: Throttle Valve Control Module -J338- From Intake Tube, Remove/Install

Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -1- and -2-, remove the Throttle Valve Control Module -J338- from the intake tube.

NOTE:

Place a cloth underneath to soak up any escaping power steering fluid.

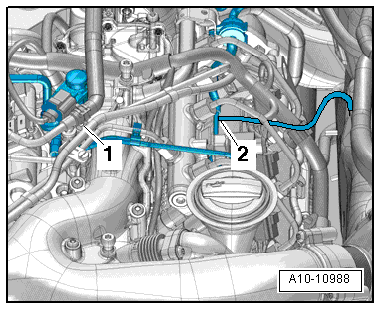

Fig 14: Identifying Power Steering Pump Hydraulic Hose -1- And Bolts -2-

Courtesy of AUDI OF AMERICA, LLC

-- Clamp a remove the power steering pump hydraulic hose -1- with hose clamp Hose Clamps - Up To 25mm 3094.

-- Seal any open lines and connections with a clean plug from the Engine Bung Set VAS 6122.

NOTE:

Ignore item -2-.

Fig 15: A/C Compressor Refrigerant Lines And Electrical Connector -2-, Remove/Install

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of damaging refrigerant lines and hoses.

Do not stretch, kink or bend refrigerant lines and hoses.

-- Remove the clamp screws -1- and -5-.

-- Remove the screws -3- and -4- and then remove the refrigerant lines from the A/C compressor.

-- Seal any open lines and connections with a clean plug from the Engine Bung Set VAS 6122.

NOTE:

Ignore item -2-.

-- Loosen the hose clamps -2 and 3- and remove the air guide hoses.

Fig 16: Air Guide Hoses, Remove/Install

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore item -1-.

-- Loosen the clamps -arrows- and remove the air guide pipe.

Fig 17: Air Guide Pipe, Remove/Install

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -arrow-.

Fig 18: Disconnecting Connector -Arrow- On Right Side From Engine

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the vacuum hose -arrow- leading to the brake booster.

Fig 19: Identifying Vacuum Hose -Arrow

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Very hot fuel can burn your skin.

In extreme cases, the fuel lines and the fuel itself in vehicles with a common rail engine can be as hot as 100 °C after the engine has been turned off. Let the fuel cool down before opening any line connections otherwise there is a danger of scalding.
Wear safety gloves
Wear protective eyewear.

There is a risk of injury because the fuel is under pressure.

To reduce pressure in fuel system, lay a clean cloth around the connector and carefully loosen connector.

-- Remove the fuel supply -1- and return -2 and 3- lines on the plenum chamber bulkhead.

Fig 20: Identifying Fuel Supply -1- And Return Lines -2 And 3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove and disconnect the connectors -1, 2 and 4- for the Heated Oxygen Sensor -G39-.

Fig 21: Component Location On Plenum Chamber Bulkhead

Courtesy of AUDI OF AMERICA, LLC

-- Free up the electrical wire.

NOTE:

Ignore item -1, 3 and 4-.

-- Remove the Heated Oxygen Sensor -G39- -5-.

Fig 22: Locating Primary Catalytic Converter And Sensors, Catalyst Temperature Sensor 1 -G20- (2), EGT 3 -G495- (1), EGT 2 -G448- (3) & NOx Sensor -G295- (4)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the NOx Sensor -G295- -4- and free up the electrical wire.

-- Secure the NOX sensor to the body.

NOTE:

Ignore -item 1, 2 and 3-.

-- Remove the windshield wiper arms -1- and -3-. Refer to WINDSHIELD WIPER ARM, REMOVING AND INSTALLING .

Fig 23: Identifying Removal Of Windshield Wiper Arm -1- And -3-

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Danger of causing damage to the plenum chamber cover.

Coat the transition area between the windshield and plenum chamber cover with soapy water and carefully pull the cover vertically up out of the retainers on the windshield, beginning at the edge of the window.

-- Remove gasket -5-.

-- Carefully remove the plenum chamber covers -2- and -4- from the retainers on the windshield.

-- Remove cover for E-box, plenum chamber -arrows-.

Fig 24: Identifying Bolts To E-Box Plenum Chamber Cover -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1, 2 and 3- at E-box plenum chamber coupling station and free up the wiring harness.

Fig 25: Identifying Electrical Connectors -1 Through 3-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the ground connection nut -2-.

Fig 26: Identifying Engine Control Module (ECM) -J623- -1- And GND Wire Nut -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the engine control module -1-. Refer to Engine Control Module -J623-, REMOVING AND INSTALLING .

-- Free up electrical wiring harness to engine.

-- Loosen upper control arm nut a few turns and pull joint off with Puller - Ball Joint T10187.

Fig 27: Pressing Out Upper Control Arm

Courtesy of AUDI OF AMERICA, LLC

-- Completely remove upper control arm nut.

-- Repeat procedure on opposite side of vehicle.

-- Disconnect the connectors -arrow- at the left and right on the front speed sensors.

Fig 28: Identifying Speed Sensor Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove wiring harness bolts -arrows-.

Fig 29: Identifying Wire Harness Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove brake caliper bolts -1-.

NOTE:

Do not change brake line bend shape.

-- Engage brake caliper in wheel housing with wire.

CAUTION:

Risk of damaging brake pistons.

Do not operate brake pedal with brake caliper removed.

-- Repeat procedure on opposite side of vehicle.

-- Disconnect lower threaded connection -2- at left and right on stabilizer bar.

Fig 30: Identifying Right/Left Lower Bolt On Stabilizer Bar

Courtesy of AUDI OF AMERICA, LLC

-- Remove nuts from bolts -1- at left and right on strut.

NOTE:

Bolts -1- are removed later.

-- Disconnect the exhaust system at the clamping sleeve -arrows-.

Fig 31: Disconnect Exhaust System At Clamping Sleeve -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove NOx Sensor 2 -G687- -3- and free up the wiring harness on the transfer case.

Fig 32: Locating NOx Sensor 2 -G687- -3-

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -5- and free up the electrical wire.

-- Loosen the clamp -arrow- and remove the Reducing Agent Injector -N474-.

-- Move the nuts -1- and screws -2- and -4- and remove the SCR catalytic converter.

-- Remove the nuts and bolts -arrows- then remove the noise insulation bracket.

Fig 33: Identifying Bracket For Noise Insulation

Courtesy of AUDI OF AMERICA, LLC

-- Remove the exhaust system bracket bolts -arrows- on the longitudinal member.

Fig 34: Identifying Exhaust System Bracket At Left And Right From Longitudinal Members -Arrows-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Exhaust Gas Temperature Sensor 4 -G648- -arrow-.

Fig 35: Identifying Exhaust Gas Temperature Sensor 4 -Arrow-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Differential Pressure Sensor -G505- hoses from the pressure lines on the particulate filter; to do this, loosen the hose clamps -arrows-.

Fig 36: Disconnect Differential Pressure Sensor Hoses -Arrows

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect electrical connector -arrow- on steering gear.

Fig 37: Identifying Electrical Connector -Arrow- On Steering Gear

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear driveshaft. Refer to REAR DRIVESHAFT ASSEMBLY OVERVIEW . .

Fig 38: Identifying Tunnel Support And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the selector lever cable ball head -1- from the transmission shift lever using the Pry Lever 80-200.

Fig 39: Identifying Selector Lever Cable Ball Head -1- And Cable Mounting Bracket Bolt -2-

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -2- and remove the cable mounting bracket from the transmission.

NOTE:

Do not bend or kink the selector lever cable.

-- Remove the 2 bolts and then remove the steering gear heat shield -A-.

Fig 40: Identifying Steering Gear Heat Shield -A-

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of distorting airbag spiral spring.

Separate universal joint from steering gear only when front wheels are in straight ahead position.
Secure steering wheel with adhesive tape to prevent position of steering wheel and steering gear from changing.

-- Remove the bolt -B- for the universal joint. .

-- Remove universal joint from steering gear.

-- Place the Used Oil Collection And Extraction Unit SMN372500 under the disconnection point.

Fig 41: Identifying Hose Clamp -Arrow

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -arrow- and disconnect the left fluid line on the lock carrier leading to the power steering cooler.

-- Seal any open lines and connections with a clean plug from the Engine Bung Set VAS 6122.

NOTE:

Observe the rules of cleanliness for working on automatic transmissions. Refer to INFORMATION ON 6-SPEED AUTOMATIC TRANSMISSION 0AT .

Fig 42: Identifying ATF Lines And Bolt - Arrow -

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- and disconnect the ATF lines from the ATF thermostat.

-- Seal any open lines and connections with a clean plug from the Engine Bung Set VAS 6122.

-- Remove the nut -1- on the right longitudinal member and disconnect the ground wire form the threaded pin.

Fig 43: Identifying Ground (GND) Cable On Longmember

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the automatic transmission connectors -1, 2 and 3-.

Fig 44: Connect Connectors -1 Through 3-

Courtesy of AUDI OF AMERICA, LLC

Prepare scissor lift platform:

Fig 45: Identifying Scissor Lift Platform VAS 6131

Courtesy of AUDI OF AMERICA, LLC

-- Equip Scissor Lift Table VAS6131A with Scissor Lift Table - Audi Set VAS6131/10 and Scissor Lift Table - A8 Set VAS6131/11 and Scissor Lift Table - Q7 Set VAS6131/13 as follows:

Platform Coordinates	Parts from Scissor Lift Table - Audi Set VAS6131/10, Scissor Lift Table - A8 Set VAS6131/11 and Scissor Lift Table - Q7 Set VAS6131/13
B2	/10-1	/10-2	/10-5	/11-1
G2	/10-1	/10-2	/10-5	/11-1
A4 and C4	/13-5	-	-	/13-2
F4 and H4	/13-6	-	-	/13-2
B5	/13-4	/10-2	/10-5	/13-1
G5	/13-4	/10-2	/10-5	/13-1
C7	/10-1	/10-2	/10-5	/10-8
F7	/10-1	/10-2	/10-5	/10-8
B14	/10-1	/10-3	/10-5	/10-7
G14	/10-1	/10-3	/10-5	/10-7

-- First manually secure the mounting elements to the Scissor Lift Table VAS6131A.

Fig 46: Attach Mounting Elements From VAS 6131/10 And VAS 6131/11 At Front Of Subframe

Courtesy of AUDI OF AMERICA, LLC

-- Position the scissor lift table horizontally.

Note bubble level (sight glass) on support platform.

-- Guide the scissor lift table under the engine/transmission subassembly.

-- Attach mounting elements from Scissor Lift Table - Audi Set VAS6131/10 and Scissor Lift Table - A8 Set VAS6131/11 at front of subframe as shown in illustration.

-- Ensure threaded spindles are completely installed.

-- Attach mounting elements from the Scissor Lift Table - Audi Set VAS6131/10 and Scissor Lift Table - Q7 Set VAS6131/13 at the left and right on the transmission carrier as shown in the illustration.

Fig 47: Attaching Mounting Elements From VAS 6131/10 And VAS 6131/13

Courtesy of AUDI OF AMERICA, LLC

-- Position mounting elements Scissor Lift Table - Q7 Set VAS6131/13 at the left and right on the suspension struts as shown in the illustration.

Fig 48: Attaching Mounting Elements From VAS 6131/13 On Struts

Courtesy of AUDI OF AMERICA, LLC

-- Attach mounting elements from Scissor Lift Table - Audi Set VAS6131/10 at the left and right on the subframe as shown in the illustration.

Fig 49: Attach Mounting Elements From VAS 6131/10 At Rear Of Subframe

Courtesy of AUDI OF AMERICA, LLC

-- Attach mounting elements from Scissor Lift Table - Audi Set VAS6131/10 at left and right on transmission carrier as shown in illustration.

Fig 50: Attaching Mounting Elements From VAS 6131/10 At Left And Right On Transmission Carrier

Courtesy of AUDI OF AMERICA, LLC

-- Rotate mounting element spindles upward until all mounting pins come in contact with mounting points.

-- Attach mounting element base plates to Scissor Lift Table VAS6131A and tighten to 20 Nm.

-- Mark position of subframe, engine carrier and transmission carrier to longitudinal members with a felt-tip pen.

Fig 51: Subframe, Engine Carrier, Crossmember And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 to 4- in a diagonal sequence in steps.

CAUTION:

Risk of damaging hose and wiring connections as well as engine compartment.

Make sure all the hoses and lines between the engine, transmission, subframe and body have been disconnected.
Carefully guide engine-transmission assembly with subframe out of engine compartment while lowering.
Carefully guide the suspension struts past the longitudinal members.

-- Lower the engine/transmission sub-assembly using the Scissor Lift Table VAS6131A.

-- Remove the Scissor Lift Table VAS6131A with engine/transmission assembly from under the vehicle.
