Fuel System Cooler, Through 05/2010, Removing And Installing

Removal

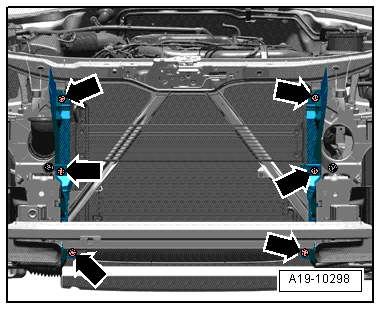

Fig 1: Identifying Bolts -Arrows- At Left And Right Air Ducts

Courtesy of AUDI OF AMERICA, LLC

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Remove the front bumper cover. Refer to FRONT BUMPER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and remove the left and right air ducts.

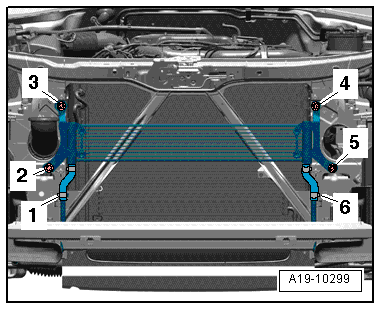

-- Remove the bolts -2 through 5- ; then loosen the clamps -1- and -6- and remove the fuel cooling circuit cooler from the coolant hoses.

Fig 2: Identifying Bolts -2 Through 5- And Clamps -1- And -6-

Courtesy of AUDI OF AMERICA, LLC

Installation

Install in reverse order of removal. Note the following:

• Tightening specifications. Refer to RADIATOR OVERVIEW .

-- Install the front bumper cover. Refer to FRONT BUMPER, REMOVING AND INSTALLING .

-- Fill the coolant, refer to COOLANT, DRAINING AND FILLING .
