Left Upper Coolant Pipe, Through 05.10, Removing And Installing
WARNING: This page is about a different variant/trim than selected.
Removal
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .
-- Carefully pull the engine cover off the 4 bolts one after the other -arrows-.
-- Remove the EGR Cooler Switch-Over Valve -N345- -1- from the bracket.

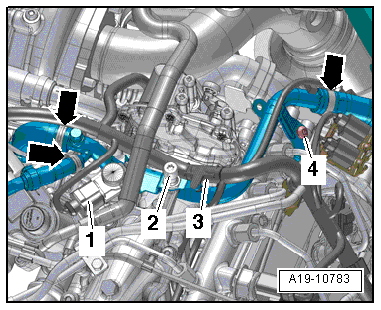

Fig 2: Identifying EGR Cooler Switch-Over Valve -N345- -1-, Engine Cover Ball Studs -2-, Wiring Harness -3- And Bolt -4-
-- Remove the bolt -4- and the engine cover bolts -2-.
-- Free up the wiring harness -3- on the top of the coolant pipe on the left side.
-- Loosen the clamps -arrows- and remove the left upper coolant pipe.
Installation
Install in reverse order of removal. Note the following:
- Tightening specifications. Refer to COOLANT PIPES OVERVIEW .
NOTE:
Secure all hose connections with hose clamps of the same type as those equipped by the factory.
-- Fill the coolant, refer to COOLANT, DRAINING AND FILLING .
