Fastener Tightening Specifications
WARNING: This page is about a different variant/trim than selected.
| Component | Bolt Size | Nm |
|---|---|---|
| Accelerator pedal module | - | 10 |
| Bracket for auxiliary fuel pump, nut | - | 9 |
| Bracket for fuel filter, nut | - | 9 |
| Carrier plate | - | 33 |
| Filter housing cover | ||
| - Bleeder screw | - | 5 |
| - Bolt | - | 8 |
| Fuel filter housing, bolt/nut | - | 8 |
| Fuel cooler to bracket, bolt/nut | - | 8 |
| Fuel Pump Control Module -J538- bolt/nut | - | 3.5 |
| Fuel tank 1 | ||
| - Bolt | - | 5 |
| - Bolt | - | 9 |
| Locking ring | - | 110 |
| Shield for fuel filler tube, nut | - | 9 |
| Mounting strap | - | 33 |
|
||
Locking Flange Cover - Tightening Specifications
-- Tighten the nuts -1 through 4- to 9 Nm

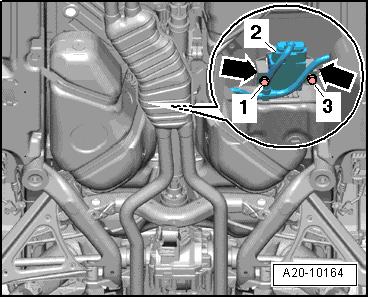

Fuel Pump Control Module -J538- for Vehicles with a Horizontal Fuel Filter - Tightening Specification
- Installed location: In the front on the fuel tank above the exhaust system and the driveshaft.
-- Tight the bolts -1 and 3- to 3.5 Nm.
