Regulator Valve Assembly Overview, 6.0L (V12)
WARNING: This page is about a different variant/trim than selected.

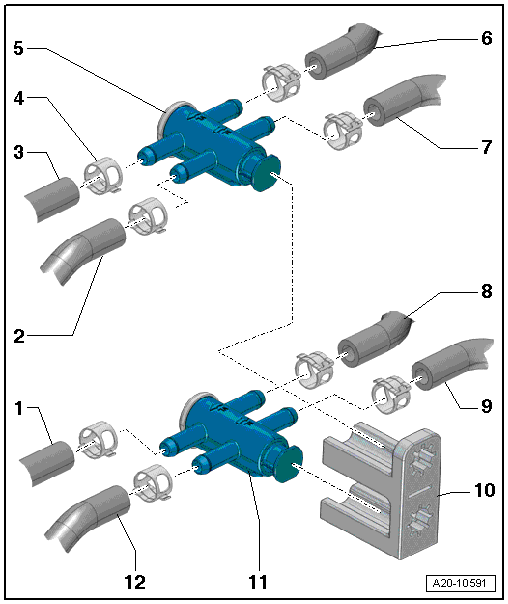

- Fuel Supply Hose
- To fuel filter
- To the connection on the filter housing cover identified with "VF2"
- Fuel Return Hose
- From the engine (left cylinder bank)
- Fuel Supply Hose
- To fuel filter
- To the connection on the filter housing cover identified with "VF1"
- Spring Clamp
- Regulator valve
- Flow direction identified with "VL" or "RL" and arrows
- Do not interchange connections
- Removing and installing, refer to REGULATOR VALVE, REMOVING AND INSTALLING, 6.0L (V12) .
- Fuel Supply Hose
- From the fuel tank
- Fuel Return Hose
- to the fuel system cooler
- Fuel Supply Hose
- From the fuel tank
- Fuel Return Hose
- to the fuel system cooler
- Foam Bracket
- For the regulator valves
- Regulator valve
- Flow direction identified with "VL" or "RL" and arrows
- Do not interchange connections
- Removing and installing, refer to REGULATOR VALVE, REMOVING AND INSTALLING, 6.0L (V12) .
- Fuel Return Hose
- From the engine (right cylinder bank)
