Overview - Fuel Tank, Vehicles With 6.0L (V12) Engine
WARNING: This page is about a different variant/trim than selected.

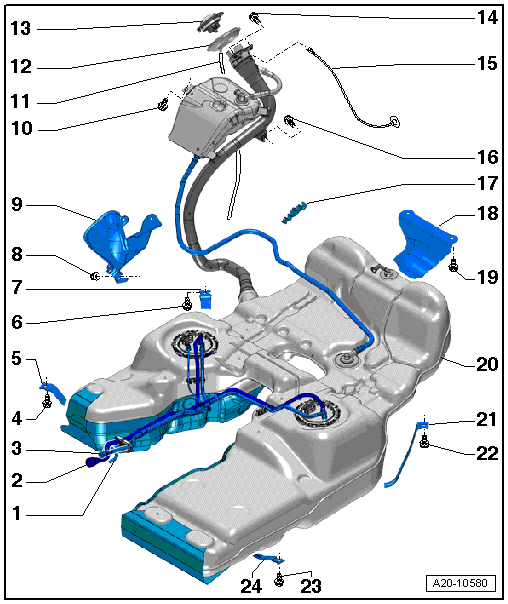

- Fuel supply line
- To the metering pump for the auxiliary heater
- Clipped in on fuel tank
- Fuel Return Line
- from the fuel system cooler
- Clipped in on fuel tank
- Connector couplings, disconnecting, refer to CONNECTOR COUPLINGS, SEPARATING .
- Fuel supply line
- To the regulator valve
- Clipped in on fuel tank
- Connector couplings, disconnecting, refer to CONNECTOR COUPLINGS, SEPARATING .
- Bolt
- Tightening sequence Installing
- 33 Nm
- Mounting strap
- front right
- Pay attention to the installed position.
- Bolt
- Tightening sequence Installing
- 33 Nm
- Mounting strap
- rear right
- Pay attention to the installed position.
- Nut
- 9 Nm
- Shield
- for fuel filler tube
- Bolt
- 9 Nm
- Overflow Hose
- Rubber Gasket
- Cap
- Attached to the fuel filler door insert with an permanent fastener
- Bolt
- 5 Nm
- Ground Connection
- For discharging electrostatic charge
- make sure the connector fits securely on the fuel filler tube metal ring
- After installing, check electrical connection of fuel filler tube to a bare area of chassis using Ohm meter - Specified value: approximately 0 Ω
- Bolt
- 9 Nm
- Bracket
- For breather line
- Carrier Plate
- Bolt
- Tightening sequence Installing
- 33 Nm
- Fuel Tank
- With heat shield
- Removing and installing, refer to FUEL TANK, REMOVING AND INSTALLING, 6.0L (V12) ENGINE .
- Mounting strap
- Rear left
- Pay attention to the installed position.
- Bolt
- Tightening sequence Installing
- 33 Nm
- Bolt
- Tightening sequence Installing
- 33 Nm
- Mounting strap
- Front left
- Pay attention to the installed position.
-- Route the ground connection -1- as shown.
-- Ensure connector of Ground (GND) connection fits securely at metal ring of fuel filler tube.
NOTE:
Ignore -items 2 and 3-.
WARNING:
Danger due to electrostatic charge.
- After installing, check electrical connection on fuel filler neck metal ring to an empty spot on the body using an Ohm meter.
- Specified value: approximately 0 Ω.
