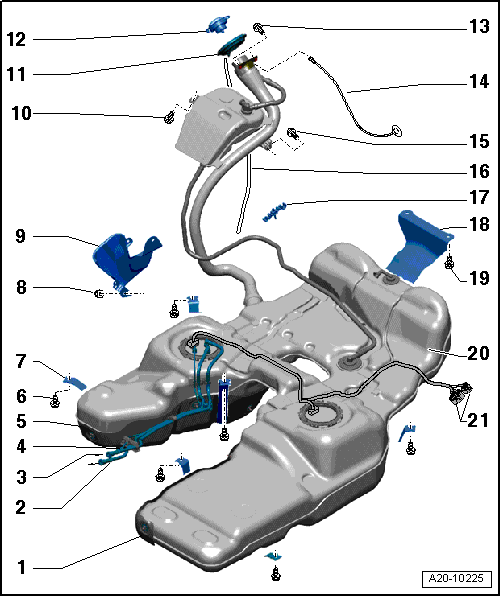

Overview - Fuel Tank, Vehicles With 3.0L (V6);4.2L (V8) Engines
WARNING: This page is about a different variant/trim than selected.
- Left Heat Shield
- Fuel Supply Line
- To fuel filter
- Clipped in on fuel tank
- Connector couplings, disconnecting, refer to CONNECTOR COUPLINGS, SEPARATING .
- Fuel Return Line
- from the fuel system cooler
- Clipped in on fuel tank
- Connector couplings, disconnecting, refer to CONNECTOR COUPLINGS, SEPARATING .
- Fuel Supply Line
- To the metering pump for the auxiliary heater
- Clipped in on fuel tank
- Right Heat Shield
- Bolt
- 33 Nm
- Tightening sequence, refer to Installing
- Mounting Strap
- Observe varying lengths
- Pay attention to the installed position.
- Nut
- 9 Nm
- Shield
- For fuel filler tube
- Bolt
- 9 Nm
- Rubber Gasket
- Cap
- Attached to the fuel filler door insert with an permanent fastener
- Bolt
- 5 Nm
- Ground (GND) Connection
- For discharging electrostatic charge
- Make sure the connector fits securely on the fuel filler tube metal ring
- After installing, check electrical connection of fuel filler tube to a bare area of chassis using Ohm meter - Specified value: approximately 0 Ω
- Bolt
- 9 Nm
- Overflow Hose
- Vent Line Bracket
- Carrier Plate
- Bolt
- 33 Nm
- Tightening sequence, refer to Installing
- Fuel Tank
- Removing and installing, refer to FUEL TANK WITH ATTACHMENTS, REMOVING AND INSTALLING .
- Connectors
- Only vehicles through 10.06
- For electric fuel pump and fuel level sensor
- Remains on fuel tank when fuel tank is removed
-- Route the GND connection -1- as shown.
-- Ensure connector of GND connection fits securely at metal ring of fuel filler tube.
NOTE:
Ignore items -2 and 3-.
WARNING:
Danger due to electrostatic charge.
- After installing, check electrical connection on fuel filler neck metal ring to an empty spot on the body using an Ohm meter.
- Specified value: approximately 0 Ω.
